sigma

usb2uart

Overview

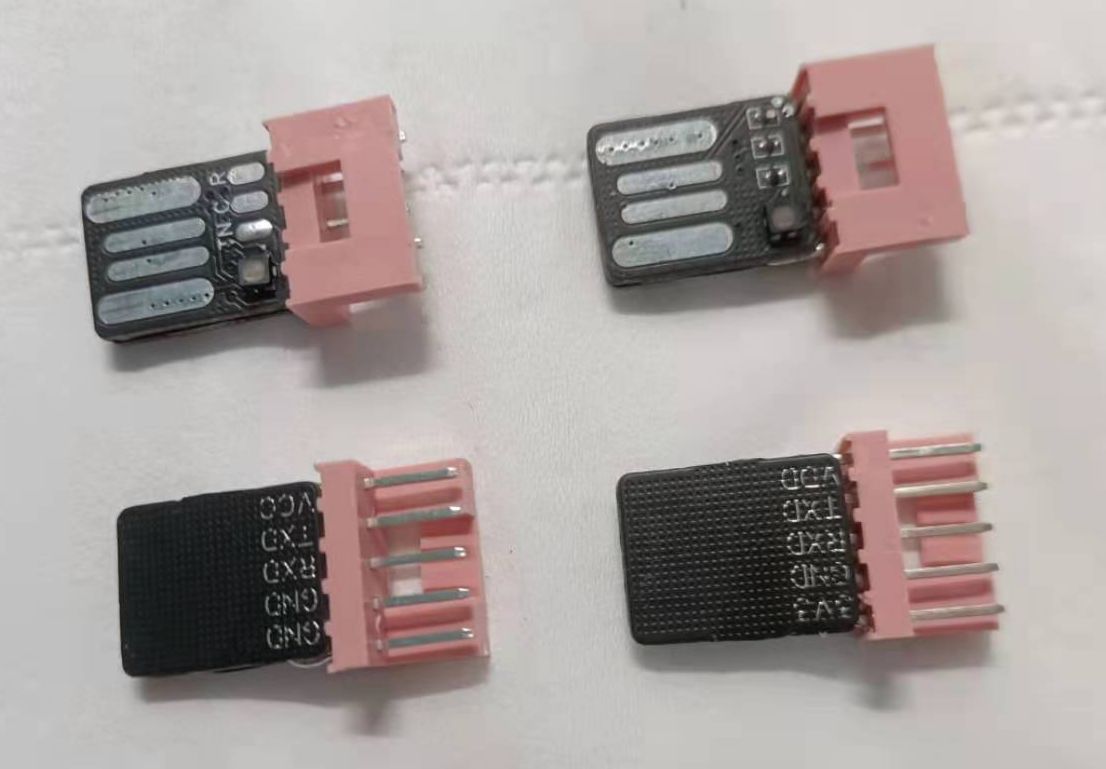

Based on the original ch340e chip, a ch552e chip circuit is added
to facilitate badusb and serial port debugging.

When burning ch552e, you can plug in an external pull-up module or use tweezers to short-circuit the contacts on the board.
