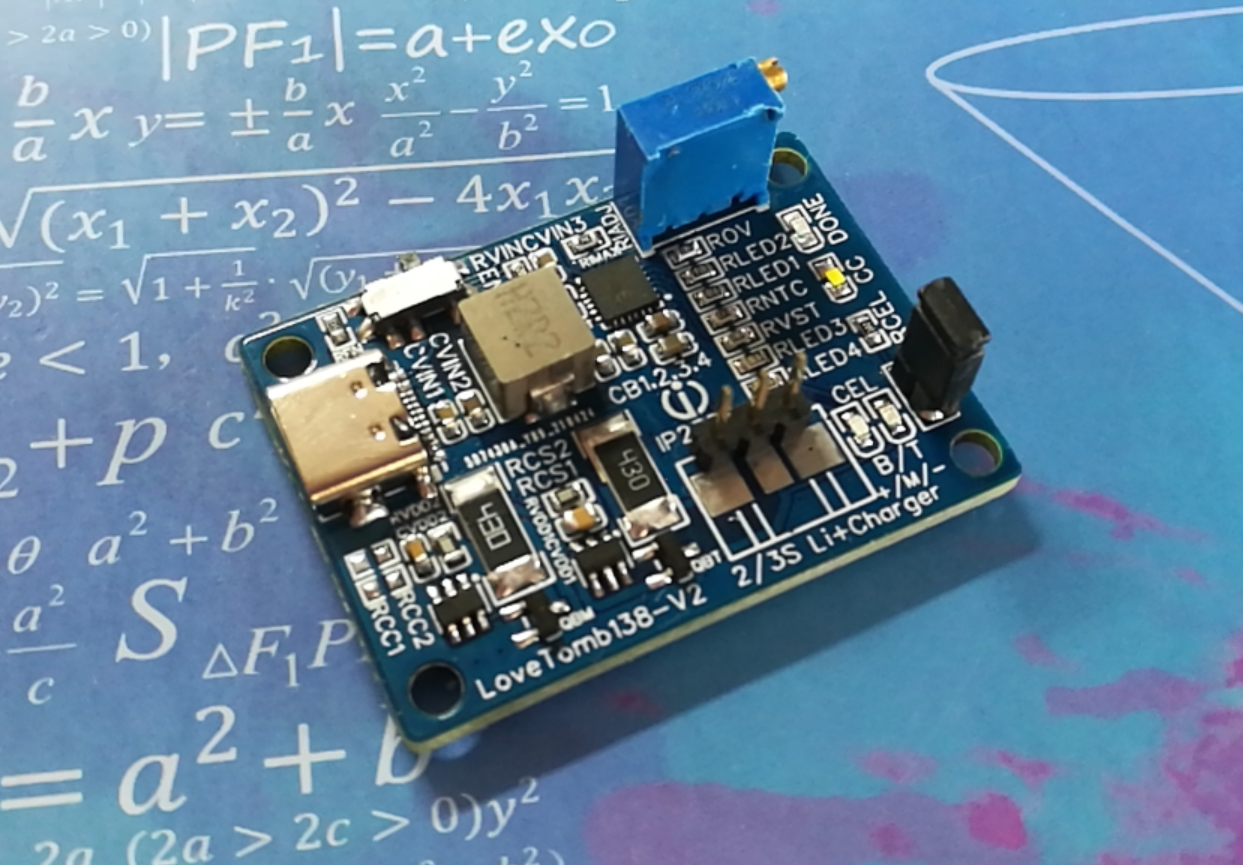

Yingjixin-IP2326 Evaluation Board (OEM)

Overview

Lithium charging module for 2 and 3S

Features
 15W synchronous switch boost charging
 Boost charging efficiency 94%
 Built-in power MOS
 Integrated charge balancing circuit
 Support input fast charge application, can apply for
fast charge input according to battery voltage, improve charging efficiency
 Constant voltage charging voltage external resistor Adjustable
The pin can be set to charge 2 or 3 series lithium batteries
The external resistance of the charging current is adjustable
Automatically applies for fast charge input according to the battery voltage
Automatically adjusts the input current and adapts to the adapter load
Supports charging NTC Temperature
protection Input overvoltage and undervoltage protection, the external resistor is adjustable
Charging timeout protection, the external resistor is adjustable
Supports LED charging status indication
500KHz switching frequency, can support 2.2uH inductor
Output overcurrent, overvoltage, short circuit protection
IC over Temperature protection
 Input withstand voltage 25V
 ESD 4KV

Please see information sheet for details

Short-circuiting the pin header can convert it into 3-string charging mode, and leaving the pin header open can obtain 2-string charging capability.

Since the multimeter is out of power, the measured voltage may have errors. The chip supports lithium batteries of various voltages and can be switched through external resistors.

Potentiometer is used to adjust the charging current
