IP6505PRO_Added multi-protocol fast charging module that supports VOOC

Overview

IP6505PRO is a step-down fast charging module with internal integrated power MOS, simple peripherals, and supports many fast charging protocols. Input voltage: 9-30V is preferred, the maximum does not exceed 35V. Output voltage: within 12V, automatically adapts to output current: maximum 4A.

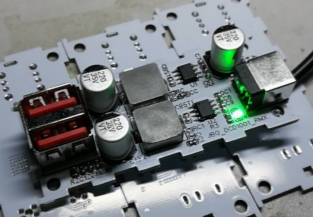

Compared with IP6505/6505T, this chip adds a VOOC flash charging function. As far as fast charging chips currently on the market are concerned, it is an application with a very high cost performance (I won’t say it too hard, in fact, I would say it is the pinnacle of mid-to-low-end applications). , this module is designed to be dual-channel, using DC044 as the input socket, vertically plugged into dual USB fast charging sockets, chip inductors and capacitors, and equipped with power indicator lights. Updated on 2020-10-21: The welding is completed, and both channels output 5.2V. Voltage
