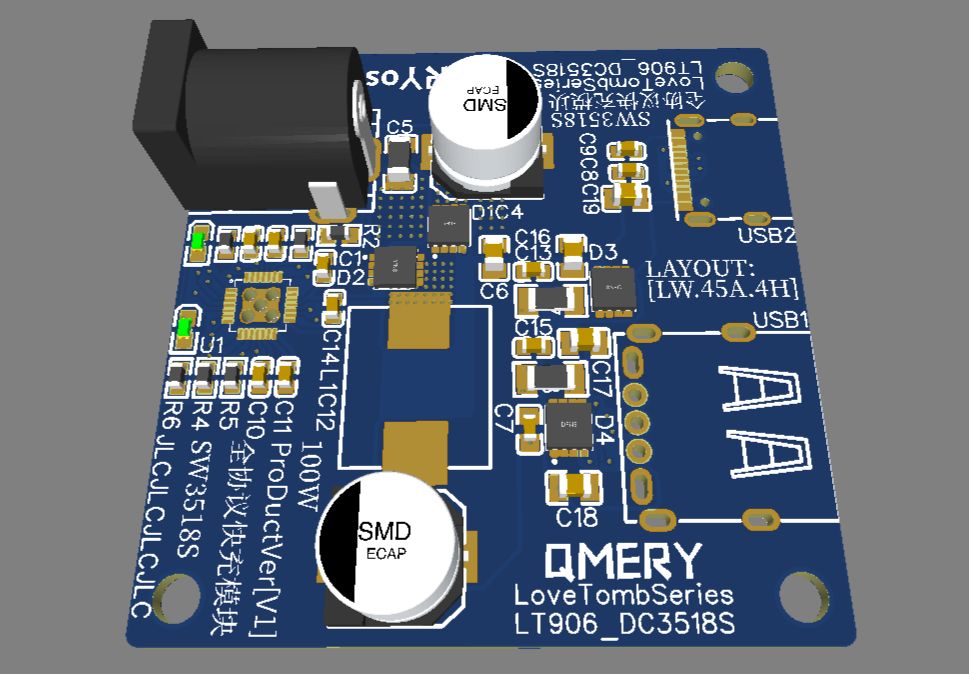

The module has an external MOS, and the output current capacity can reach 5A; the input voltage does not exceed 25V, and the MOS withstand voltage is 30V; equipped with A+C port USB output, and outputs 5V when loaded; fast charging indicator light. The schematic diagram was originally ZHQSOFT. You can go to the original link to find out. It is the 3518LAYOUT with the best quality in the entire platform!; This project removes the TVS diode, retains the CC capacitor, and replaces the MOS and electrolytic capacitor styles; This module uses self- Some PCB specifications are standard [LW.45A.4H] ( specification link ), and are included in the QMERY project catalog ; this month’s discount has been used up (the IP5358 PCB mobile power supply is still being improved ), and the project will be tested, but it will be slightly delayed. A little bit~
