#The 8th Lichuang Electronic Competition# [Lichuang Electronic Competition] Desktop electronic clock project based on Renesas

* 1. Project function introduction
Desktop electronic clock DIY training camp project based on Renesas R7FA2E1A72DFL microcontroller

* 2. Project attributes
The project is the 2023 Jialichuang summer training camp project

* 3. The open source agreement
completely replicates the 2023 Jialichuang summer training camp project. More newbies and big guys are welcome to participate in the Jialichuang training camp.
The project schematics and PCB are completely open source. Everyone is welcome to develop more expansion functions based on the results of this training camp.
Emphasize: All the specific configuration tutorials mentioned below are not made by myself, but designed, produced and provided by the hardware, software engineers and related staff in the Jialichuang training camp. I am fortunate to participate in this project. I dare not say my experience or experience. I only roughly organize my personal experience. If it can provide reference and be helpful, I will be honored.
The official open source address of this project is: https://oshwhub.com/course-examples/li-chuang-dian-sai-ji-yu-rui-sa-de-zhuo-mian-dian-zi-shi-zhong-she-ji.
Public agreement: Public Domain

*4. Hardware part
1. PCB: Schematic diagram and PCB drawn in full online mode using Jiali Chuang EDA (Professional Edition)
2. 3D shell: Designed using Jiali Chuang EDA (Professional Edition), order directly on the software. The ordering experience is good, the salesperson and engineer are very professional [thumbs-up], the material I use is resin LEDO 6060 (white) polished-rough (surface treatment), the appearance is delicate and the feel is good.
3. Panel: Acrylic panel is used, customized material: transparent acrylic, printing method: front, thickness 2mm (if someone develops a touch function, the thickness may be considered thinner. I have not been able to achieve it, so I will not make any suggestions. Renesas's software e2studio provides software tuning for the touch function. For details, please move to the tutorial in the "Software Section" below. The tutorial specifically teaches you how to configure it). The Panel Design Training Camp does not provide a tutorial for this project. If anyone wants a panel, they need to design it themselves. (Design by yourself at Station B - EasyEDA - search for "panel" - use EasyEDA Professional Edition to design a high-value panel!)

*5. Software part
1. The software used is e2studio officially provided by Renesas. Note that you need to build an FSP environment. The official website (Renesas Electronics Corporation) provides FSP (Flexible Configuration Installation Package) (Flexible Configuration Software Package (FSP) | Renesas)-2023.7.20
Note: The official website layout will always be updated in the future, and the link may become invalid. You can use Baidu for the official website. FSP needs to be searched on the official website
2. Functional modules: timer drives digital tubes, configures RTC clock and display time, buttons to modify digital tube time, saves data to flash, capacitive touch configuration, program burning (JLink or UART serial port burning), where the UART serial port uses CH340USB to TTL burner + Renesas Flash Programmer officially provided by Renesas (Renesas Flash Programmer (Programming GUI) | Renesas)-2023.7.20
Note: The official website will always be updated, and the link may become invalid. You can search for the official website on Baidu. You need to search for Renesas Flash Programmer on the official website.
3. Important! ! ! : For specific configuration tutorials, please go to Jiali Chuang's B station account-Collection·Circuit Design Training Camp-2023 Summer Training Camp, which includes software and hardware design tutorials.
Note: In addition to the above methods, the software configuration tutorial can also be learned by the engineers of the training camp Renesas also provided the same complete tutorial at B station. Here is the link (https://www.bilibili.com/video/BV1PV4y187PC/)-2023.7.20

*6. BOM list


*7. Competition LOGO verification

* 8. Demonstrate your project and record it into a video and upload it to

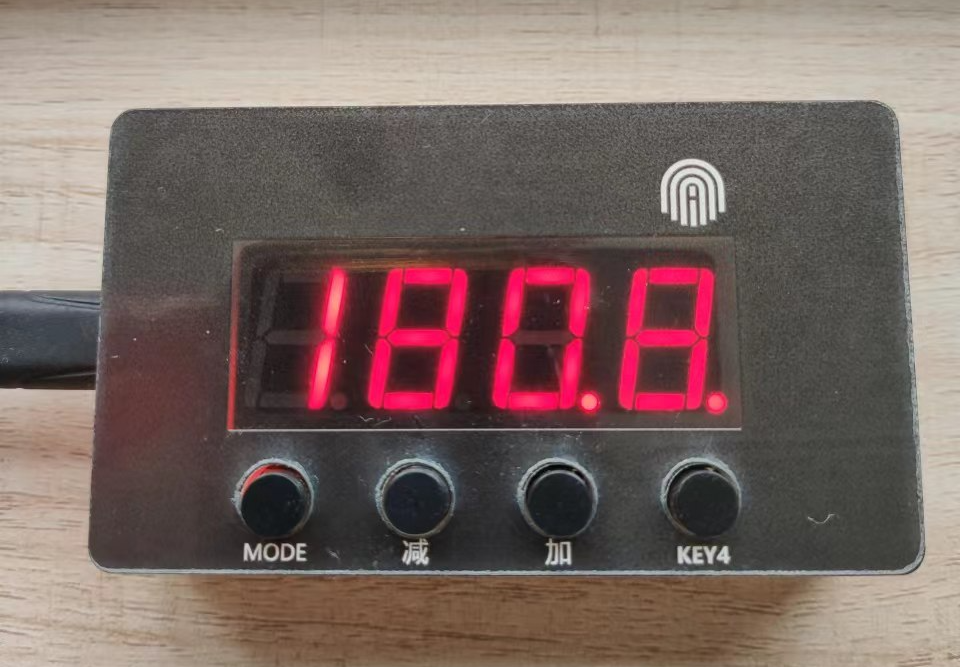

Lichuang Electronic Competition: Desktop electronic clock project based on Renesas-the finished product shows the actual effect
for more details: https://diy.szlcsc.com/posts/15a52db9fd7d40c492eb505280278e45
