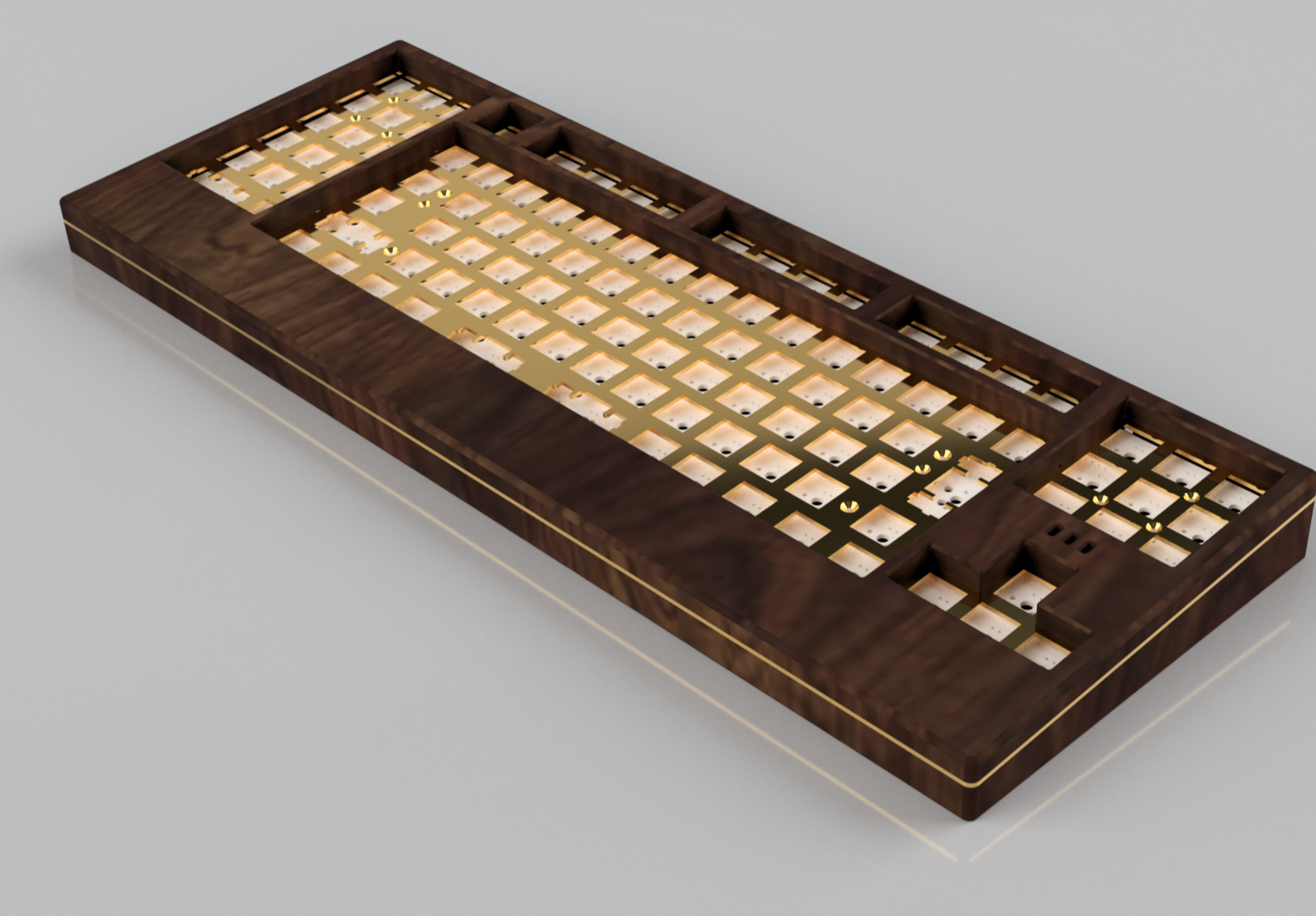

Made based on at90usb1286, JIS configuration, 109 keys in total. Tennsy2.0++ is removed for good looks and convenient wiring. 12 RGB lights at the bottom of the type-C interface are used, and a hot-swappable package with LED lights is used.
The attachment contains configuration information, qmk firmware, and positioning board files.
