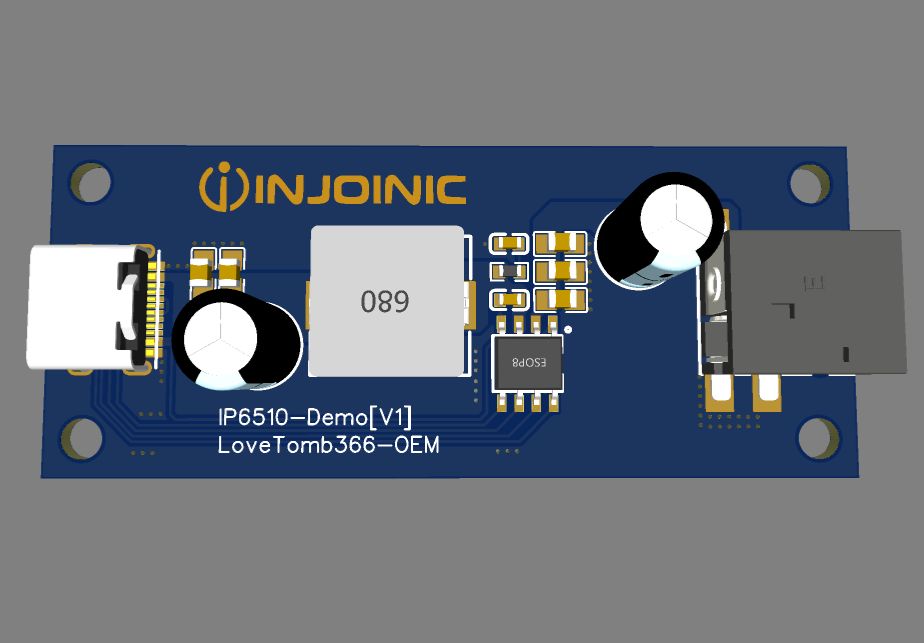

Yingjixin-IP6510 Evaluation Board (Demo)

1 Features:
 Synchronous switching buck converter
 built-in power MOS
 input operating voltage range: 4.5V to 32V output voltage range: 3V to 12V, automatically adjusts the output power
 according to the fast charging protocol  : maximum 18W (5V@3.1A, 7V@2.4A, 9V@2A,12V@1.5A)

 Output voltage wired compensation function, 100mv/A
output has CV/CC characteristics (output current is less than the set
value, output CV mode; output current is greater than the set value,
output CC mode)
 conversion efficiency up to 97%
 soft start function
 supports Type- C output interface and USB PD protocol
 support 5V, 9V, 12V PD output protocol
 output fast charging
 support BC1.2, Apple, Samsung protocol
 support QC2.0, QC3.0 fast charging protocol
 support Huawei fast charging protocol FCP
 support Samsung fast charging protocol AFC
 multiple protections, high reliability
Input overvoltage, input undervoltage, output short circuit, output
overcurrent protection
 Machine over-temperature protection
 ESD 4KV, DC withstand voltage 48V
2 Application
 Car charger
 Fast charging adapter
Smart power strip

IP6510 is a buck converter with integrated synchronous switch,
supports 9 output fast charging protocols, supports Type-C output and USB PD protocol, and provides a complete solution
for car chargers, fast charging adapters, and smart power strips . IP6510 has a built-in power MOS, the input voltage range is 4.5V to 32V, the output voltage range is 3V to 12V, it can provide a maximum output power of 18W, and can automatically adjust the output voltage and current according to the recognized fast charging protocol , typical output voltage and current There are: 5V@3.1A, 7V@2.4A, 9V@2A, 12V@1.5A. The IP6510 's buck conversion efficiency is as high as 97%. The output of IP6510 has CV/CC characteristics. When the output current is less than the set value, it outputs CV mode and the output voltage is constant; when the output current is greater than the set value, it outputs CC mode and the output voltage decreases. The output voltage of IP6510 has a line compensation function. When the output current increases the output voltage will increase accordingly to compensate for the voltage drop caused by the impedance of the connecting line. IP6510 has a soft-start function, which can prevent the inrush from affecting the stability of the input power supply. IP6510 supports Type-C interface output and integrates various fast charging protocols . It can automatically identify the fast charging protocol supported by the output terminal access device through CC1/CC2 or DP/DM, and then automatically adjust the output voltage and current. The fast charging protocols supported by IP6510 are: DCP (Apple, Samsung and BC1.2), Qualcomm QC2.0/QC3.0, Huawei fast charging protocol FCP, Samsung fast charging protocol AFC, IP6510 supports USB PD output protocol. IP6510 has a variety of protection functions, including input overvoltage and undervoltage protection, output overcurrent, overvoltage, undervoltage, short circuit protection, etc. IP6510 is packaged in ESOP8.

The information book is uploaded in the attachment for your convenience.
