OLED display module-0.96 inch (7PIN)

Overview

product description

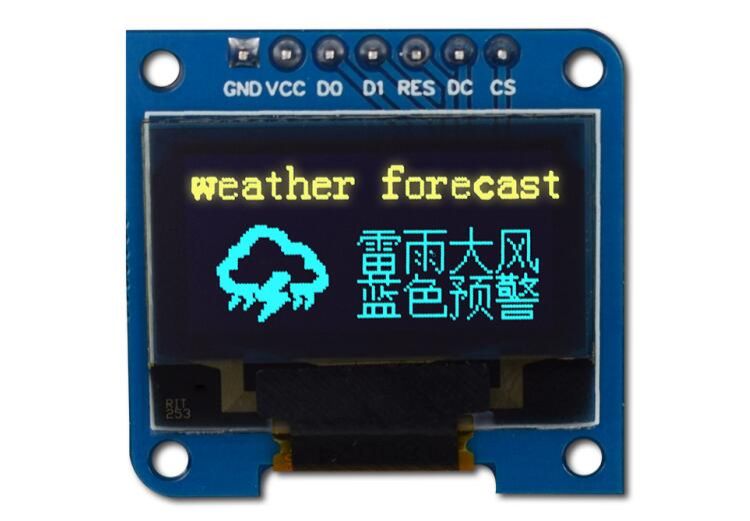

OLED display module - 0.96 inches (7PIN), this module uses SSD1306 as the main chip, the pixel is 128*64, the communication method can be SPI or IIC (the address defaults to 0x78), the pins are fully compatible with IIC (that is, when set to IIC mode , can only connect 4 wires), the default is 4-Wire SPI communication mode, self-illuminating, free viewing angle, low power consumption.

Features

Compatible with 3.3V or 5V power input
Compatible with 3.3V or 5V IO port level
Communication method can choose SPI (4-Wire or 3-Wire)/IIC

Pin function table

symbol	GND	VCC	D0	D1	RES	DC	CS
describe	Ground pin	Power input pin	clock input	Data input/response output	Reset signal input	Data/command selection input	Chip select pin
