Microcontroller minimum system board-IAP15W4K58S4

product description

       The use of enhanced 51 microcontroller makes the module more simple and easy to use while having high performance. The hardware supports practical peripherals such as ADC, PWM, SPI, CCP, and serial ports. It is also compatible with the Arduino UNO R3 interface and is compatible with more modules. It is a good helper for microcontroller learning.

Features

• This module uses 51 microcontroller, model is IAP15W4K58S4.
• Integrated USB to serial port (TTL) circuit, can be used independently.
• 5V, 3.3V, and GND pin headers are reserved to power external modules.
• Three independent buttons and two independent LED indicators for convenient experimentation.
• There are four sets of expansion interfaces for easy connection of external modules.
• The power supply of the microcontroller can be selected from 3V or 5V, and a power consumption test interface is reserved.
• There are two ways to download programs, cold start download and automatic download.
• There is a four-wire OLED interface with IIC communication method.
• Compatible interface for Arduino UNO R3.

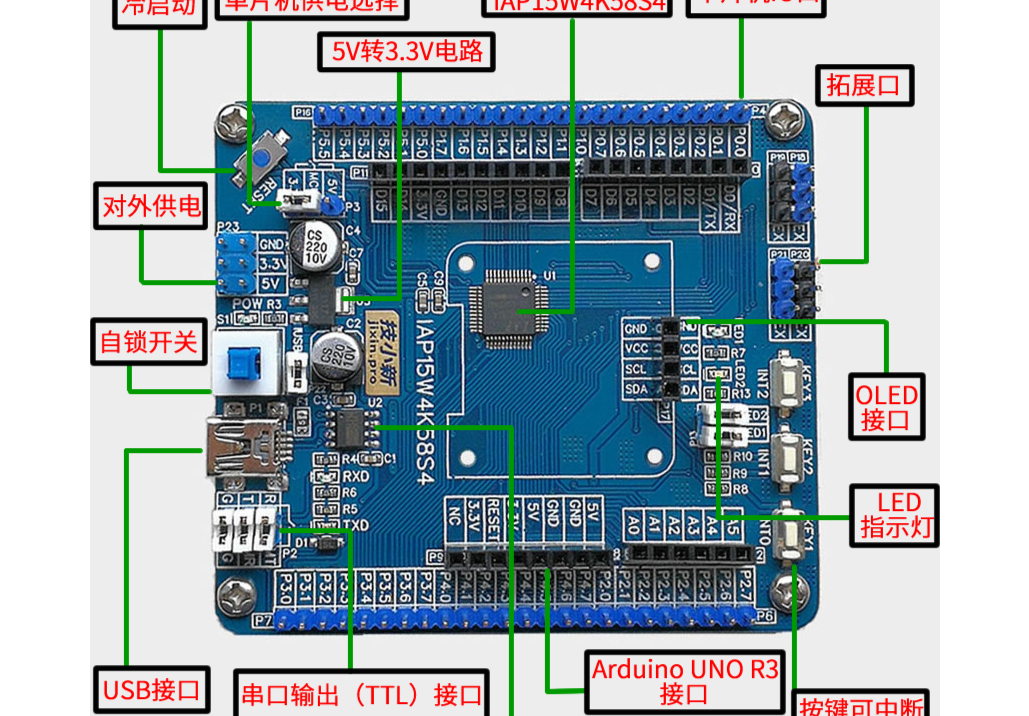

  Pin function table

  symbol	describe
  P0.0-P0.7	P0 port of the microcontroller, a total of 8 IO ports
  P1.0-P1.7	P1 port of the microcontroller, a total of 8 IO ports
  P2.0-P2.7	P2 port of the microcontroller, a total of 8 IO ports
  P3.0-P3.7	P3 port of the microcontroller, a total of 8 IO ports
  P4.0-P4.7	P4 port of the microcontroller, a total of 8 IO ports
  P5.0-P5.5	P5 port of the microcontroller, a total of 8 IO ports
  RESET	cold start button
  P1	USB-MINI-B type USB female connector
  S1	Module power switch

  P2	USB-serial (TTL) interface
  P3	Microcontroller voltage selection interface
  iUSB	Module overall current measurement interface
  P23	Reserved 5V, 3.3V, GND interfaces
  P18-P21	4 sets of expansion interfaces
  P17	OLED interface for four-wire IIC communication
  P9	Arduino UNO R3 interface
  P10	Arduino UNO R3 interface
  P11	Arduino UNO R3 interface
  P12	Arduino UNO R3 interface
