DC-DC verification board

Overview

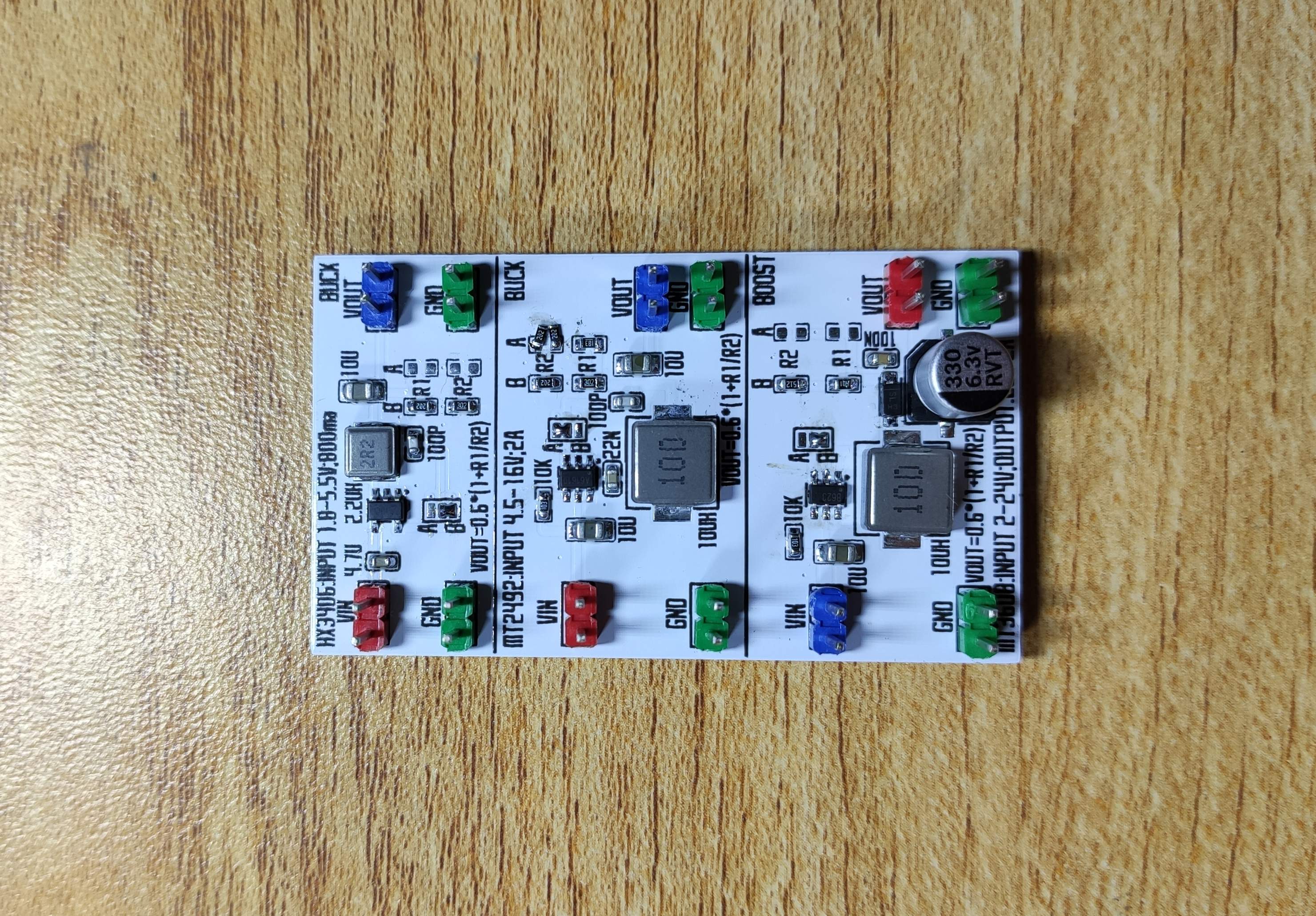

This is a DC-DC verification board with three solutions in total. These three solutions can meet the DC-DC needs of different scenarios.

HX3406: input 1.8-5.5V; output current 800ma

MT2492: input 4.5-16V; output current 2A

MT3608: Input: 2-24V; Output: 28V 2A

The actual test plan is verified OK.
