C917665_DC motor (motor) driver chip solution verification board

Overview

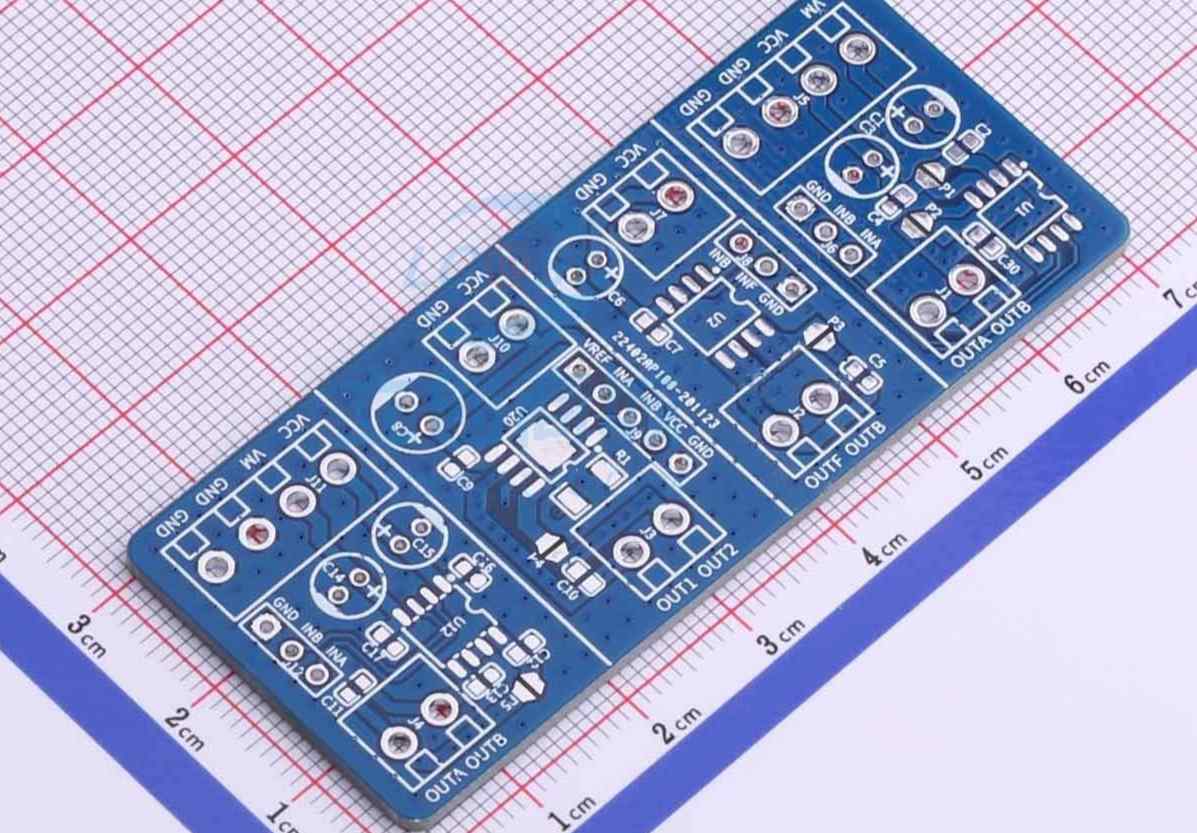

This solution verification board integrates 4 common SOP-8 packaged DC motor driver chip circuits and can test most ICs that are pin-compatible with them. The power supplies of the four circuits are independent and the ground is shared. When testing, just connect the corresponding circuit power supply. The remaining circuits that are not needed can be left floating.
