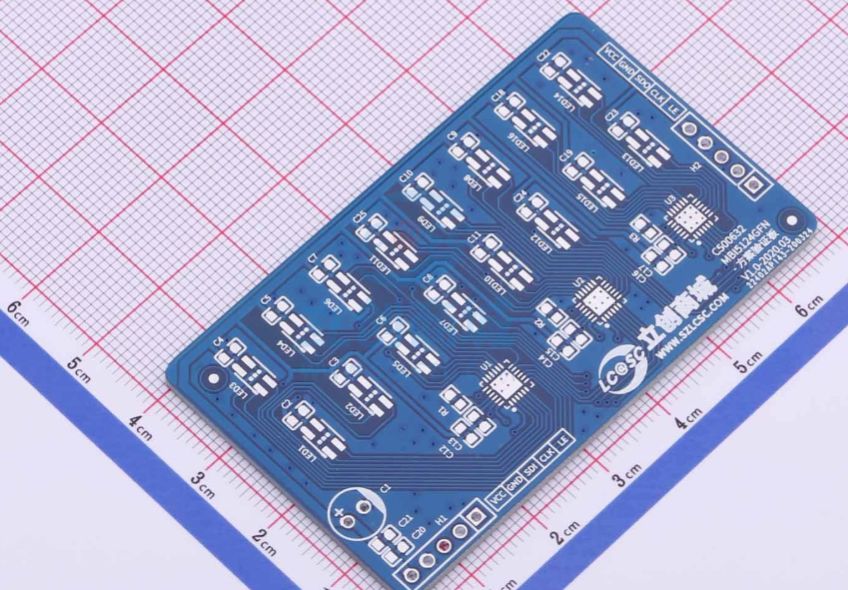

C500632_MBI5124GFN (C476807) verification board

Overview

This solution is a solution verification board used to verify the LED driver IC. This IC is a 16-channel constant current LED driver. The output current value is adjusted through an external resistor. It can be used in multiple stages through serial data input. The current range is: 1-25mA@VDD=5V; 1-10mA@VDD=3.3V
