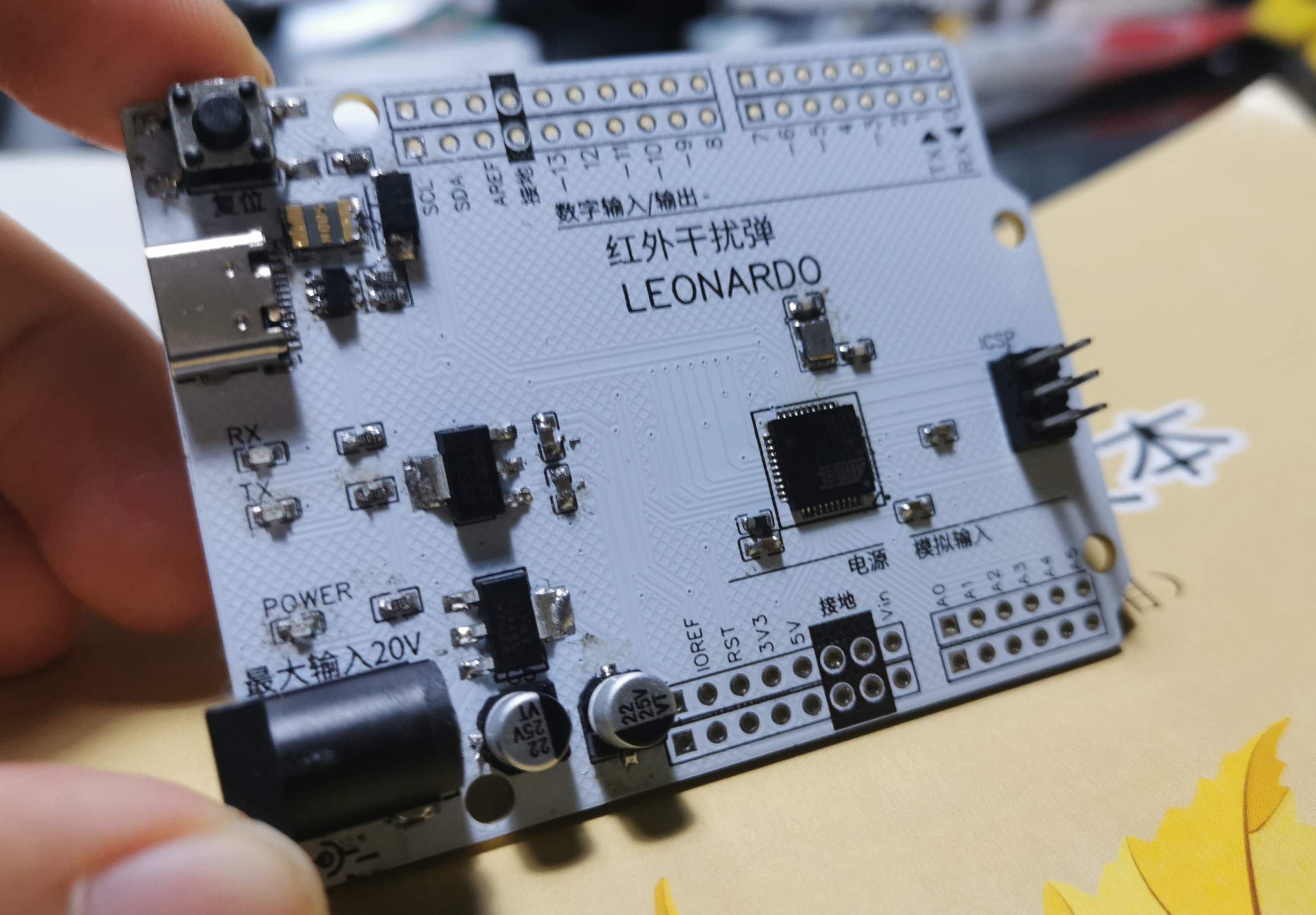

Note: This board is not guaranteed to work. When I powered on, there was no smoke or pipe explosion. I don’t have a working 32u4 to test this board (I can’t afford 32u4~~~)
Known issues: None
Features: 1.typec interface
2. Simplify the circuit and use two Schottky diodes to prevent current from flowing out of the typec and dc connectors
