USB2.0 1to2 expansion board

Overview

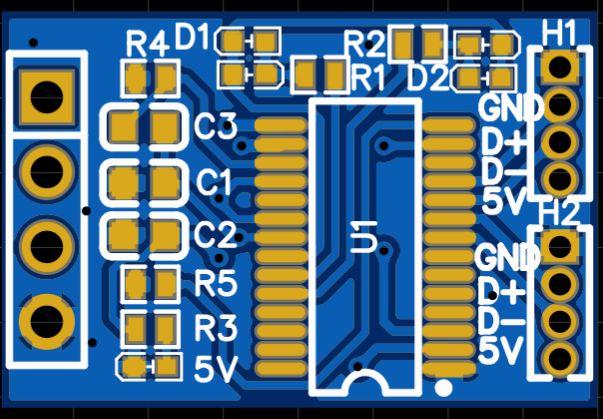

To expand the laptop USB2.0 port, various USB2.0 protocol wireless receivers can be placed inside the laptop to prevent loss and retain the laptop's own port for expansion of other devices.

The module itself is small in size, 20.19mm long, 13.46mm wide, and 1mm thick.
