Love tomb style No. 307 - high voltage 80V to 48V_TX4131L

Overview

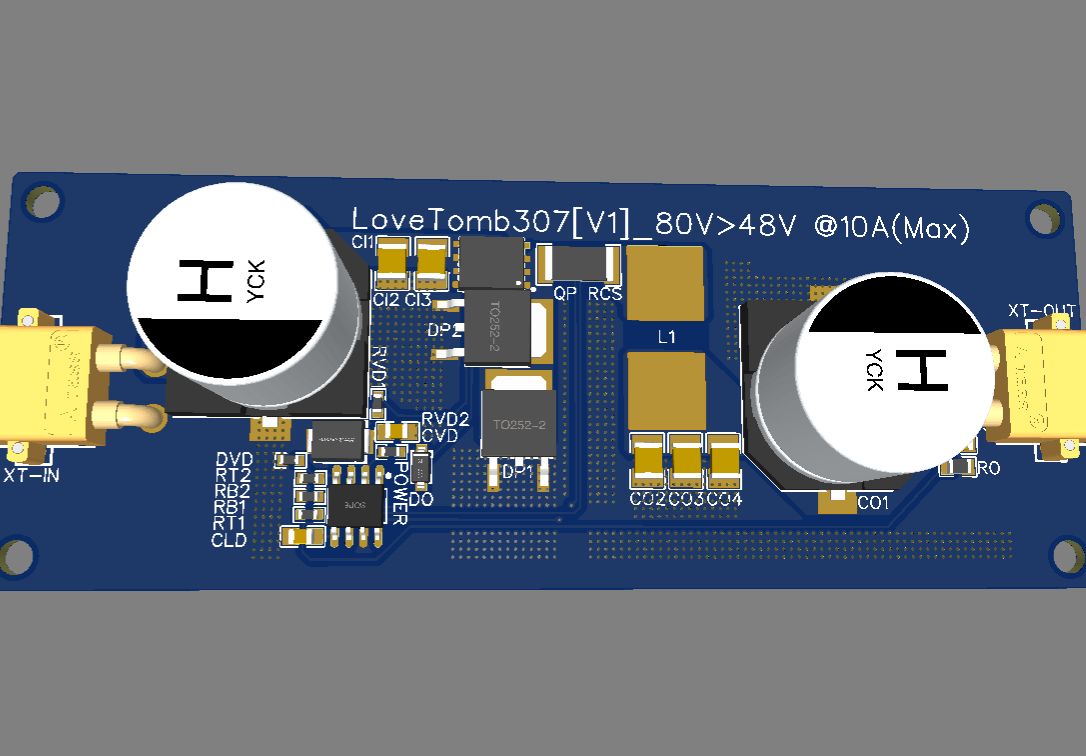

The default design is 80V to 48V

In fact, the MOS withstand voltage is 100V, while the IC can work under 150V input

Therefore, it is recommended that the input be between 60-80V (as for the input MIN voltage, it depends on actual testing)

Output current maximum 10A

The inductance theory requires 369UH, I think it has been verified

All input and output use XT30

The circuit is BUCK non-synchronous rectification (so the heat is huge) and the output is within 5A.

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
