OpenBCI Cyton V2

Overview

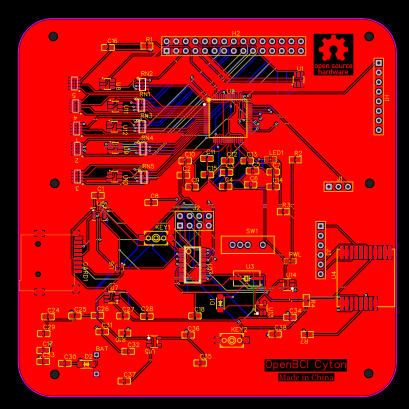

The clone project of the well-known open source project OpenBCI Cyton is also the baseboard of OpenBCI Daisy. It integrates a PIC32MX250F microcontroller that can cooperate with RFDuino to transmit data. I originally wanted to change the core to Arduino Leonardo, but I found that the wiring always failed, so I kept it the same. It turned out to be a regular hexagon, but later I found it difficult to route and changed it to a regular rounded rectangle like Daisy.

**NOTE** The OpenBCI **Cyton** used to be called the **32bit Board**. It has be rebranded and there is NO difference between the two.

You should have received a copy of the license information for these Open Source hardware files. We are licensing under the [CC-BY-SA 4.0 License](http://creativecommons.org/licenses/by-sa/4.0/legalcode). You should also have downloaded the Design Spark Library files in this directories parent. To get setup with the Design Spark software, go [here.](https://github.com/OpenBCI/V3_Hardware_Design_Files/blob/master/README.md)

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
