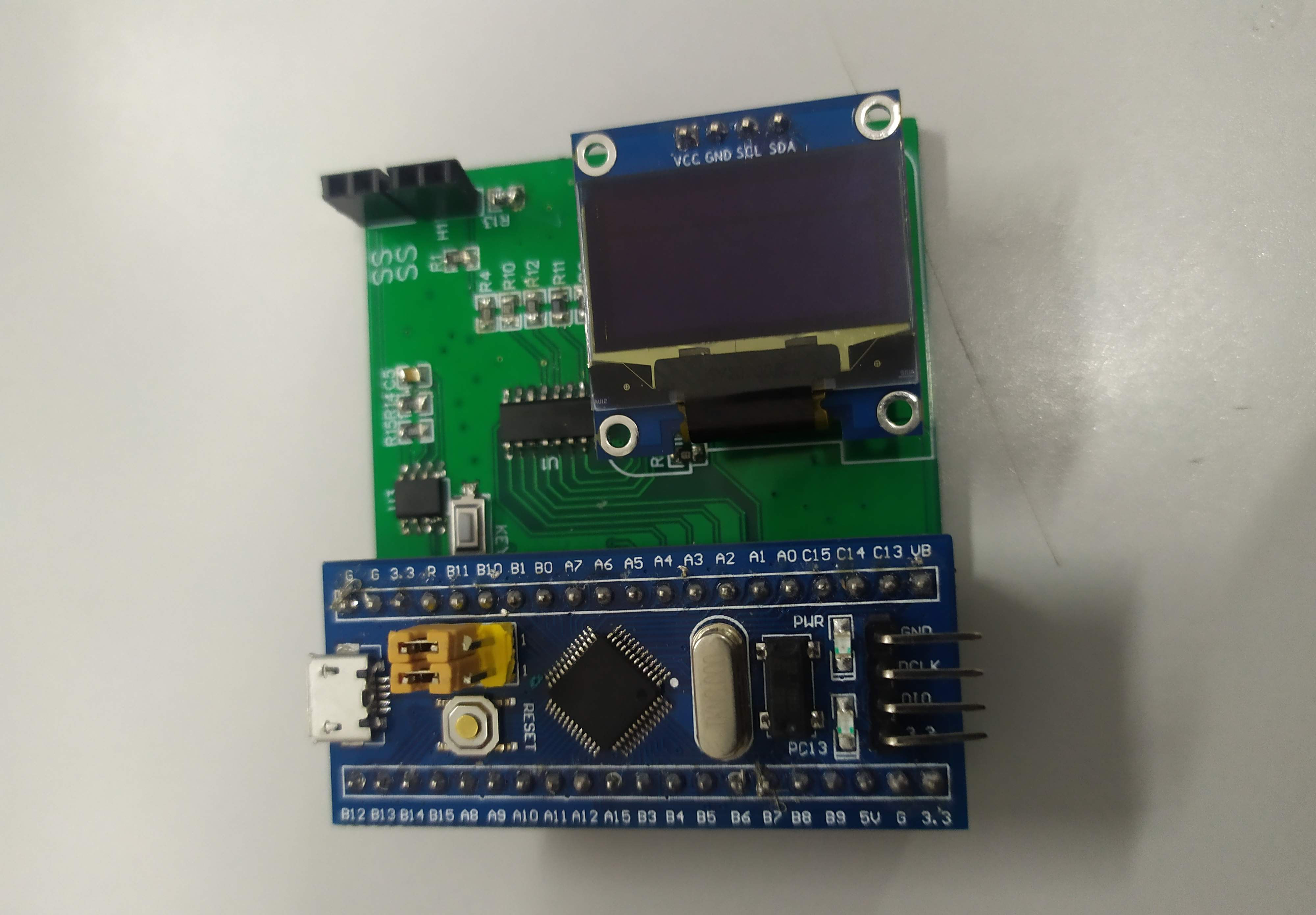

This design is a device that can measure the size of capacitance and resistance, and can measure the voltage value of the resistance to be measured through ADC, and automatically select the range. The resistor under test and the reference resistor in the circuit divide the voltage. If the voltage of the resistor under test is too large or too small. The chip will automatically select the appropriate range until a more accurate voltage value is measured. Finally, the resistance value is displayed on the screen through the OLED screen. The capacitance measurement uses the NE555 oscillation circuit to obtain the capacitance value, and displays the capacitance value on the OLED screen through the capacitance calculation formula.
