[Tuya Smart] Mini Humidity Temperature Node

Overview

An ultra-small wet temperature node based on zigbee.

Sensor:SHT30

Main control chip: TYZS5

Communication method:ZIGBEE

Communication chip: TYZS5

Power supply: 14200 lithium iron phosphate rechargeable battery

Charging chip: CN3058E

The last training camp happened to do the same wet temperature node, but that one used SHT31, which is more expensive and very large.

This time I just took this opportunity to optimize it.

Using Tuya Smart's development-free solution, 0 code is convenient and fast.

Regarding the main control, in fact, I also want to make an MCU through the zigbee communication module, but I really don’t have time to type the code, so I can only choose the development-free solution. If I have time, I can’t be a repeater !!

Regarding communication methods, I am also optimistic about WIFI communication, or BLE with low power consumption is OK. After all, not everyone has a ZIGBEE gateway.

But when I think about my ultra-mini module, it is only slightly larger than the Tuya module. The battery of this 14200 is only 150mah at most. I can't charge it every one or two weeks.

Zigbee has low power consumption and is so delicious!!!

As for communicating with WIFI, I will definitely do it next time, I will definitely do it next time ( What? You said I won’t necessarily do it next time? I’m not! I didn’t! You’re talking nonsense! )

I dug a groove between the charging module and the humidity temperature node so that after charging, I just need to break it off and the charging module will become more compact, just like a rocket without its thrust device. As for secondary charging, you don’t have to Did you see that I left a 2.54mmX2 pad on it?

Just connect two alligator clips to charge the wet temperature node.

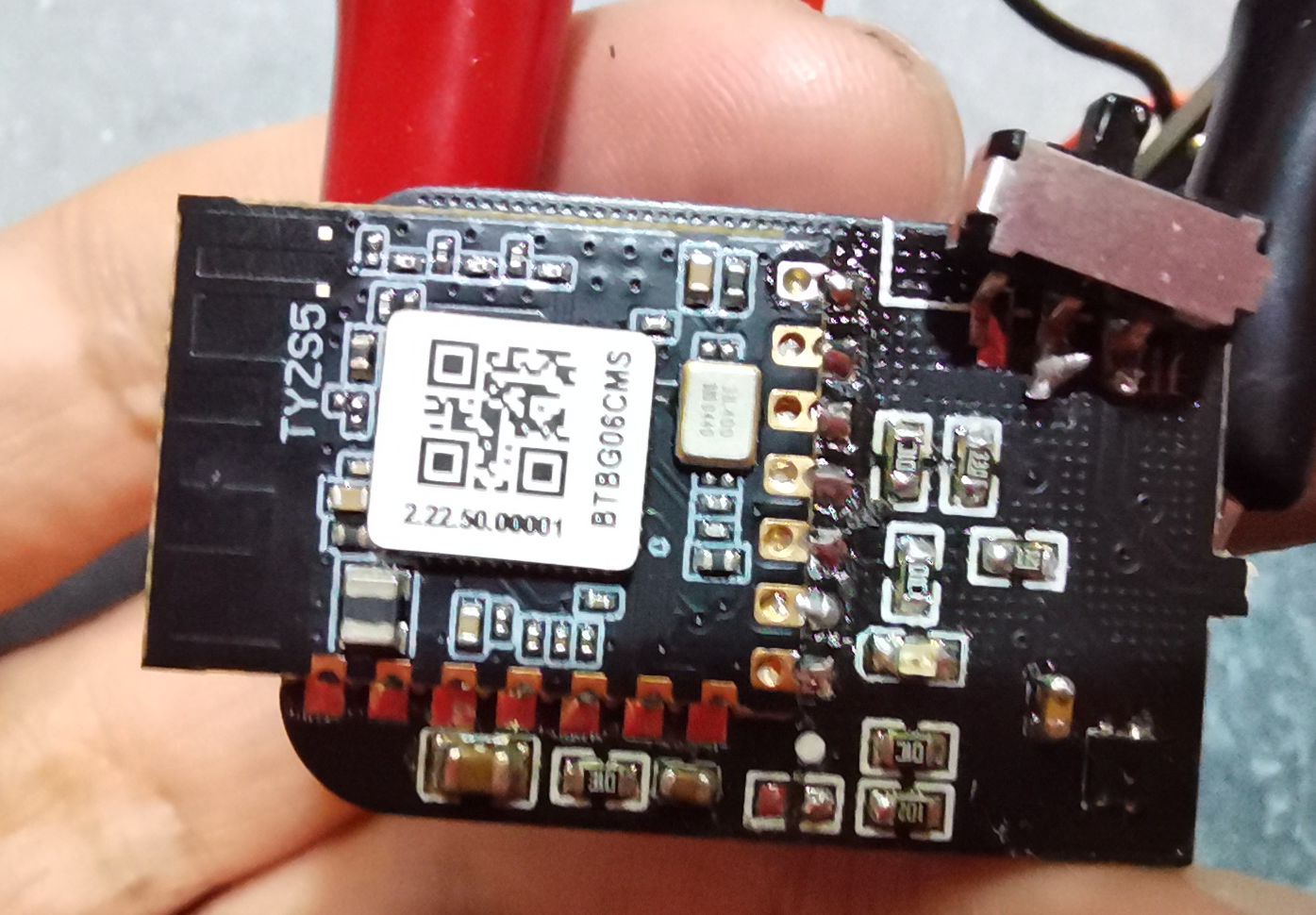

Actual picture
front

reverse side

family portrait

How it looks like charging

Power on and configure the network.
Since I canceled the distribution button, I need to manually short the pad R12 and wait until the indicator light flashes and
the connection is connected. Then you can see the temperature and humidity.
