宋元浩

ESP32 test development board

Overview

Supports ESP32 modules with the same package as ESP32-SPLO-1 and ESP32-WROOM-32

Using the test ring as a contact , the ESP32 module can be tested and burned quickly and easily , and it is easy to pick up and install .

ADC , DAC , JTAG , and touch pins are marked .

PWM , I2C , SPI and other pins can be any pin according to the official manual.

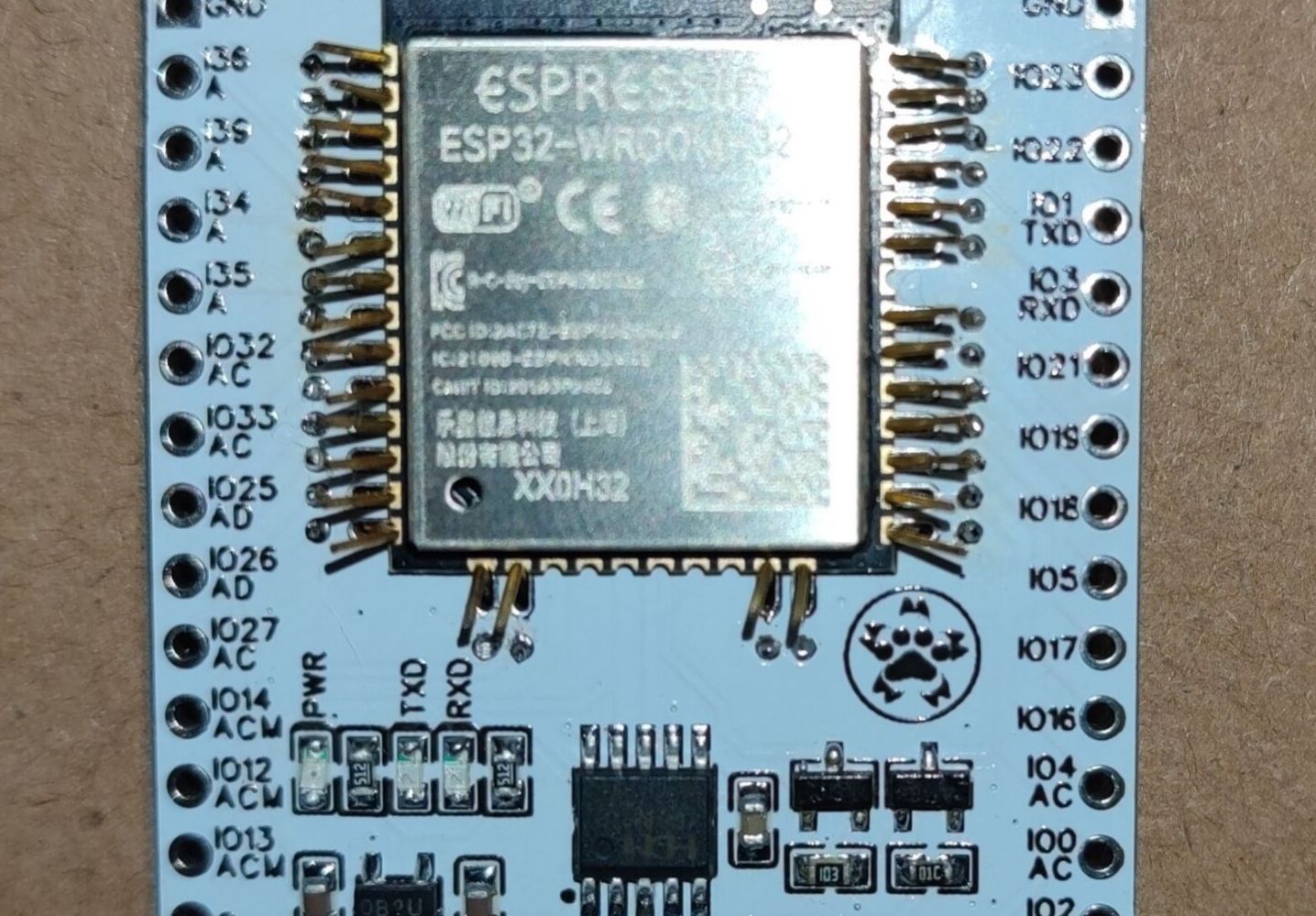

Physical picture display:

Design Files
