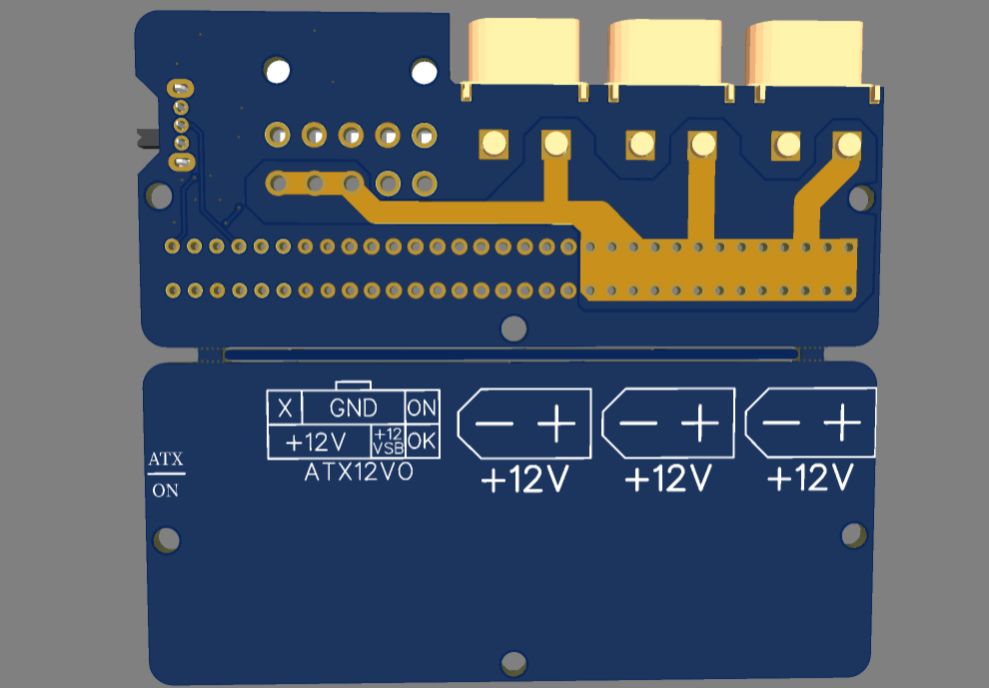

HP 460W/750W/1200W server redundant power supply adapter ATX12VO standard module board/power cage. It leads to standard PS/ON, PWROK/PG, and 12VSB, and the line sequence and level comply with the ATX12VO standard. Outputs one 10pin motherboard and three 12v XT60 interfaces, which can support dual CPU + one graphics card or 1U + dual cards. Each xt60 socket can support a maximum continuous output of 12v30a360W (as long as the power limit is not exceeded).
At the same time, the module board reserves a switch that can switch between normal ATX mode and forced on mode. In the forced on mode, the output is turned on directly regardless of the pson signal, and can be used as a normal 12v switching power supply.
