C2985579_ZigBee module verification board based on ZTLC5


Overview

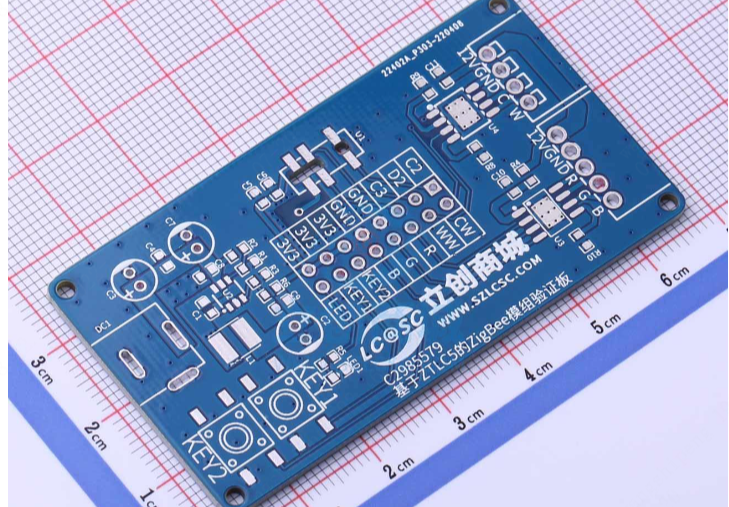

       This solution verification board is used to verify the functional application of the ZTLC5-ZigBee module. This solution has two buttons and one indicator light; it can verify the functions of RGB three-color lights and cold and warm lights. Users can connect the pin header through flying wires and use any IO port to test the above functions.

       The ZTLC5 module is one of the "zero code development" modules launched by the Atlink IoT platform. It has outstanding advantages such as strong and stable signal, wide coverage, small size, low power consumption, and rich interfaces; the IoT platform is committed to providing Provide safe, stable and fast cloud services to customers around the world. The cloud platform has billions of massive data and tens of millions of users' concurrent processing capabilities, providing users with uninterrupted computing services with a stability of up to 99.99%. "Zero-code development" not only saves engineers a lot of time on code development, but also makes the development process more concrete and simplified, bringing convenience to users.

More details can be found at  https://iot.yatelian.com/cn/docs/Document/advantage?id=Kamwscz3o3xhy  .

       Before placing an order in the mall, users can log in to the Yatelian IoT platform ( https://iot.yatelian.com ) to configure the firmware that meets their needs. After generating the firmware, they can select the configured firmware and select the module in the mall shopping cart. Quantity purchased. The steps for creating firmware (creating a product) are as follows:

1. Log in to the IoT platform console and enter product development;

2. Click to create a product;

3. Select the category, fill in the product name and product model in the product details initialization area, select the networking method, and click OK;

4. Set product functions: Go to the development page of the smart product, enter the function definition step, and select product functions under the guidance of the page;

5. Select the APP panel;

6. Carry out hardware debugging; during hardware debugging, you can configure the functions of the module IO port by yourself.

7. Product configuration;

The specific operation steps and pictures can    be viewed at https://iot.yatelian.com/cn/docs/Document/device-intelligentize-in-5-minutes?id=Kamwsef2r204q

       After completing the firmware configuration and module quantity selection, you can place an order in the mall.
