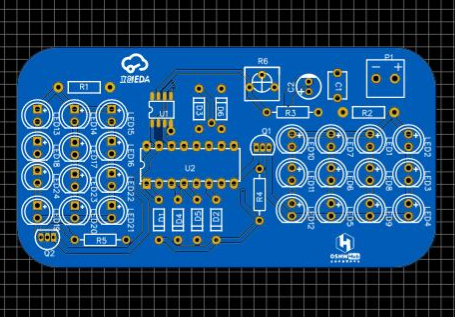

A NE555+CD4017 control board controls the two-color LED flashing. After power-on, the red and blue LEDs cycle alternately. The flashing frequency can be adjusted through a potentiometer. The flashing lights can serve as a warning or add to the atmosphere of the scene.
