Light control sensor switch

Overview

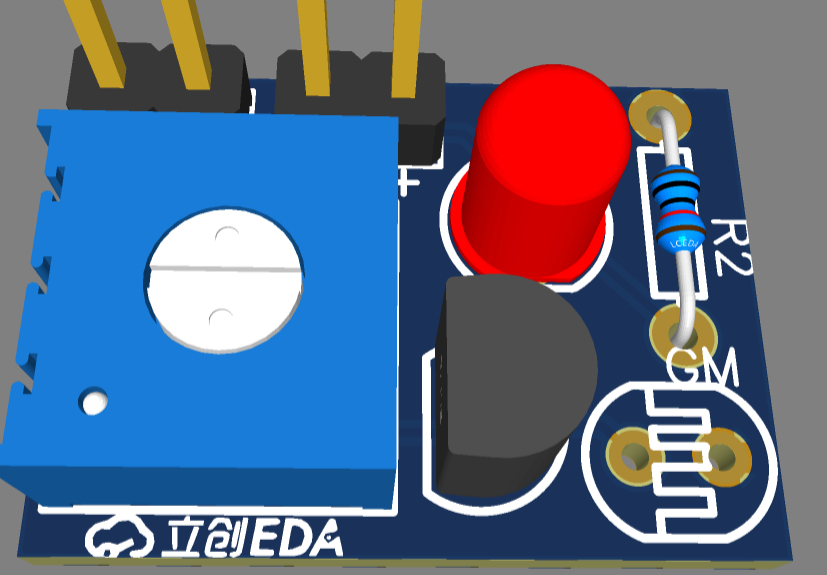

Circuit description: This circuit is an emitter follower composed of a photoresistor and a transistor. When the resistance of the photoresistor changes, it is converted into the voltage of the base. The voltage of the base is "transmitted" to the emitter, thereby controlling the brightness of the emitter LED. The reserved p2 interface can give high-level signals to the microcontroller to control other circuits, and can also be used with other modules through lead wires. It has a wide range of use, strong applicability, all-hard components, low cost, long life, etc. Features.
