[Version 21700] IP5358 two-way multi-protocol fast charging mobile power supply/power bank

(Click me for the original project link)

Two-way multi-protocol fast charging power bank/power bank

There is also a 18685 battery version

https://oshwhub.com/wzw666/5358pro

The main control chip adopts Yingjixin’s IP5358-BZ

Integrated QC2.0/QC3.0/SCP/VOOC output fast charging protocol, FCP/AFC/SFCP input and output fast charging protocol, MTK PE+1.1&2.0 output fast charging protocol, USB C/PD2.0/PD3. 0 input and output protocol, USB C PD3.0 PPS output protocol, compatible with BC1.2/Apple/Samsung mobile phones

4-light power display with fast charging indicator light

1 TYPE-A port supports 22.5W maximum power output and integrates all 22.5W fast charging protocols

1 TYPE-C port supports 22.5W maximum power input and output, integrating all 22.5W fast charging protocols

Multiple protections, high reliability, input overvoltage and undervoltage protection, output overcurrent, overvoltage and short circuit protection, battery overcharge, overdischarge and overcurrent protection

The BOM is extremely simple, and a single inductor realizes the charging and discharging functions.

High-brightness, flicker-free LED light panel (press and hold the button for 2 seconds to turn on/off)

Students who need to use a light board should bring 15 5730 LED lamp beads, which are not included in the BOM list.

Students who need to use a light board should bring 15 5730 LED lamp beads, which are not included in the BOM list.

Students who need to use a light board should bring 15 5730 LED lamp beads, which are not included in the BOM list.

Aluminum alloy shell link click here

Click here for IP5358 related information

Say important things three times

If you have any questions, please join the QQ group to ask. There is a high chance that the private message will not be seen! ! !

If you have any questions, please join the QQ group to ask. There is a high chance that the private message will not be seen! ! !

If you have any questions, please join the QQ group to ask. There is a high chance that the private message will not be seen! ! !

Group number: 232586710

Protocols supported by TYPE-C interface

Protocols supported by TYPE-A interface

VOOC protocol   picture comes from https://oshwhub.com/WIGWAG/ip5358_vooc-kuai-chong

The inductor used is Panasonic’s ETQP4M2R2KVK

The DCR is only 8.5mΩ in an ultra-small size of 8X8mm

It does not take up a lot of space and at the same time maintains sufficient output efficiency.

To use the NTC function, please replace the 51K resistor of RNTC2 with a 120K resistor, and connect a 100K NTC thermistor with an accuracy of 1% in parallel.

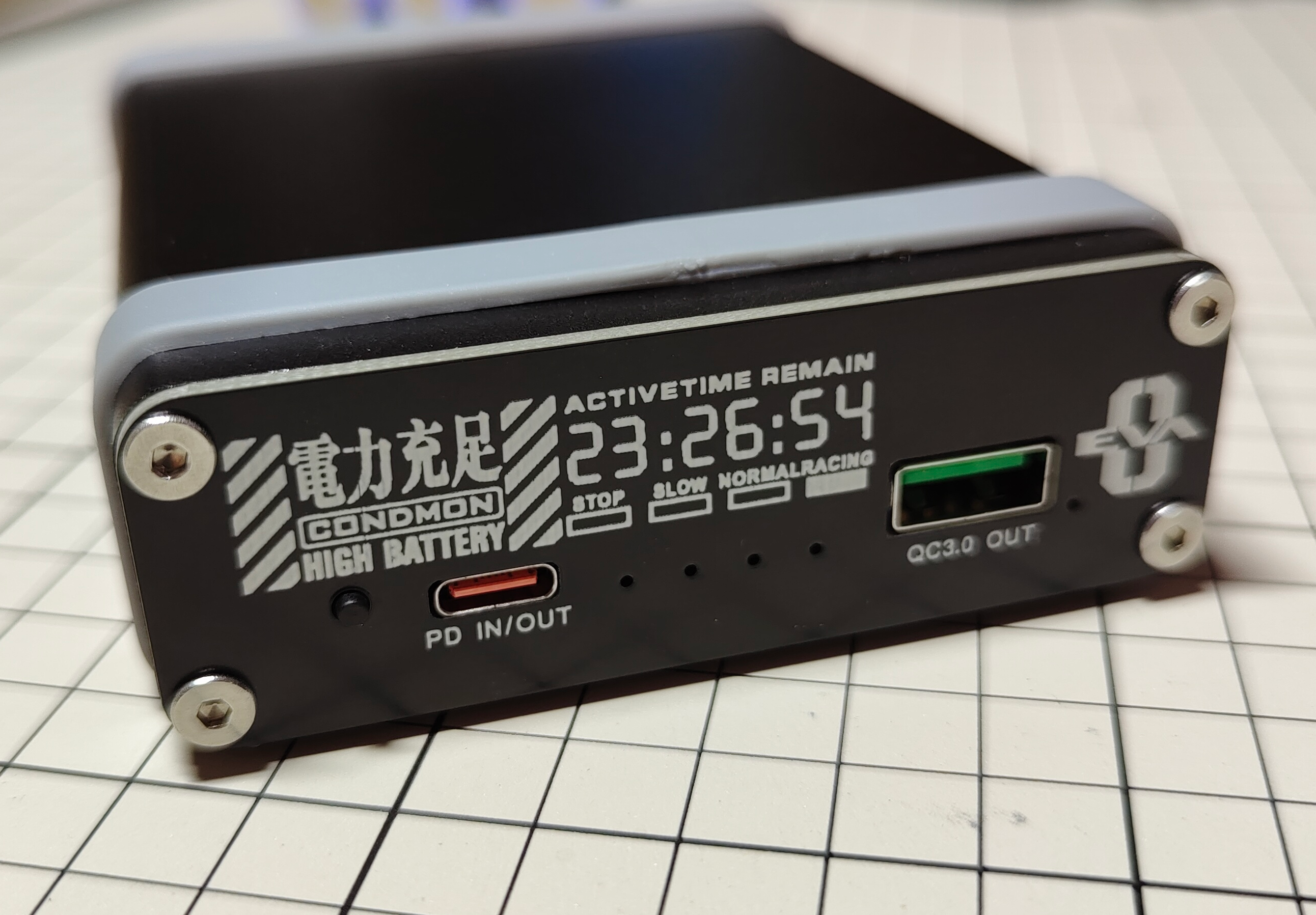

Aluminum alloy shell

Assembly and welding precautions

Assembly and welding precautions

Assembly and welding precautions

The wires of the LED light panel can be passed from the bottom of the battery to the front

The order of wire welding: first weld the LED light wire, then weld the battery positive wire, and then weld the battery negative wire.

Do not weld the wires beyond the board, otherwise the board will not fit into the housing.

Shell information
