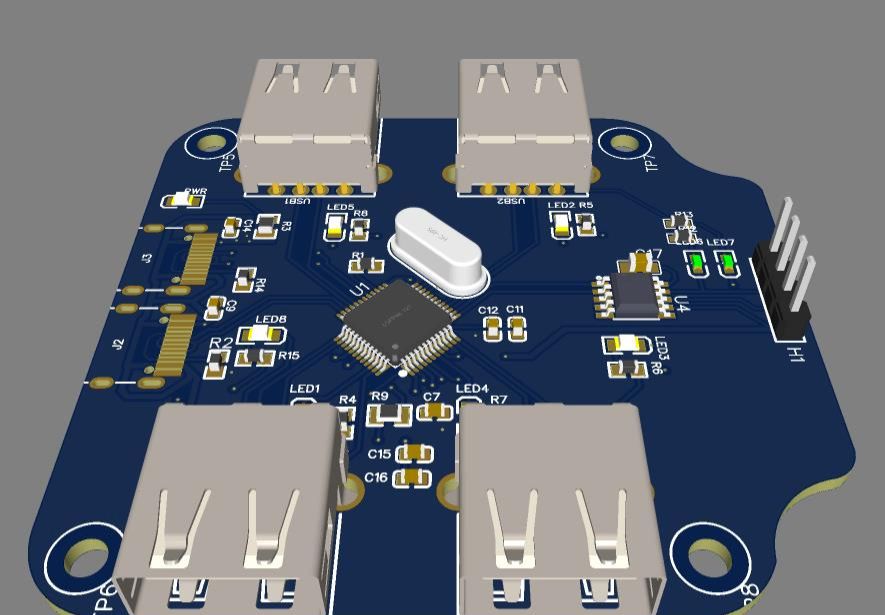

The current USBHUB power supply is powered by a DC connector. The messy power supply on the desktop is too troublesome. This design uses TYPE-C as the connector to output 4 USB channels and 1 TTL channel.
And add a power supply with a TYPE-C interface to avoid the problem of insufficient power supply caused by one line. (The project has not been verified, the results will be updated after verification)
