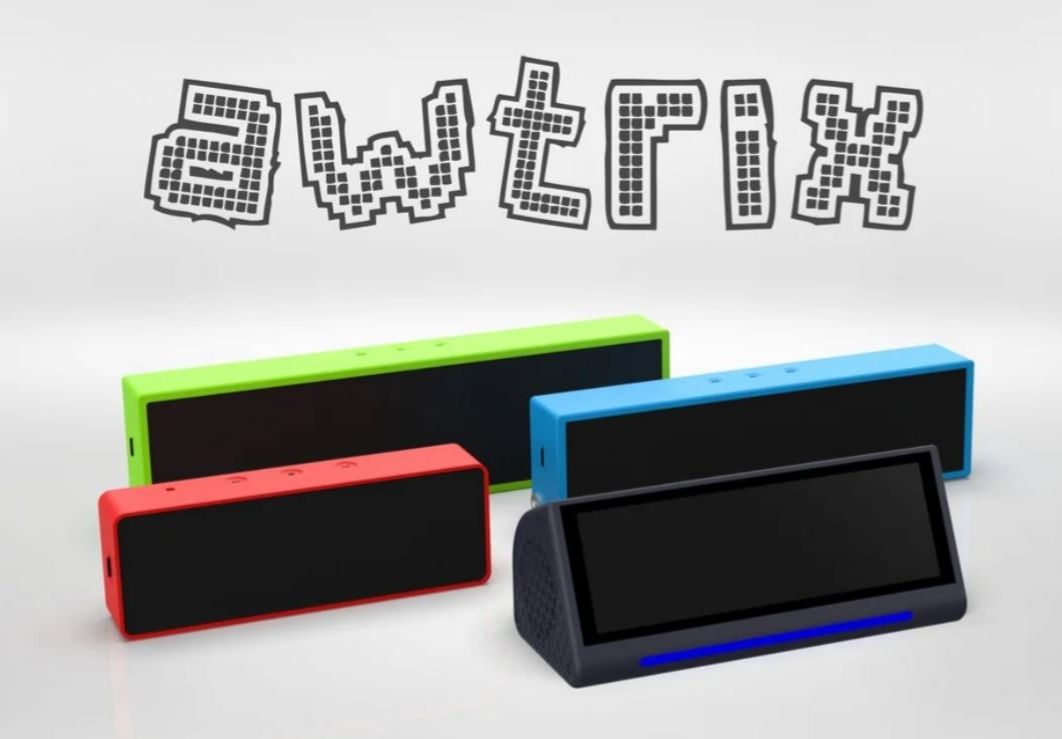

The Awtrix matrix clock Midi version of the LED Matrix uses 5050LED, which is cheaper than 3535 and 2020. It also adds a 104 capacitor, but I heard that it can be soldered or not, but it has been painted on anyway. In addition, considering that the PCB is free, the board is 8x16, so you need to put two pieces together to form 8x32.
