CH577_EVK

Overview

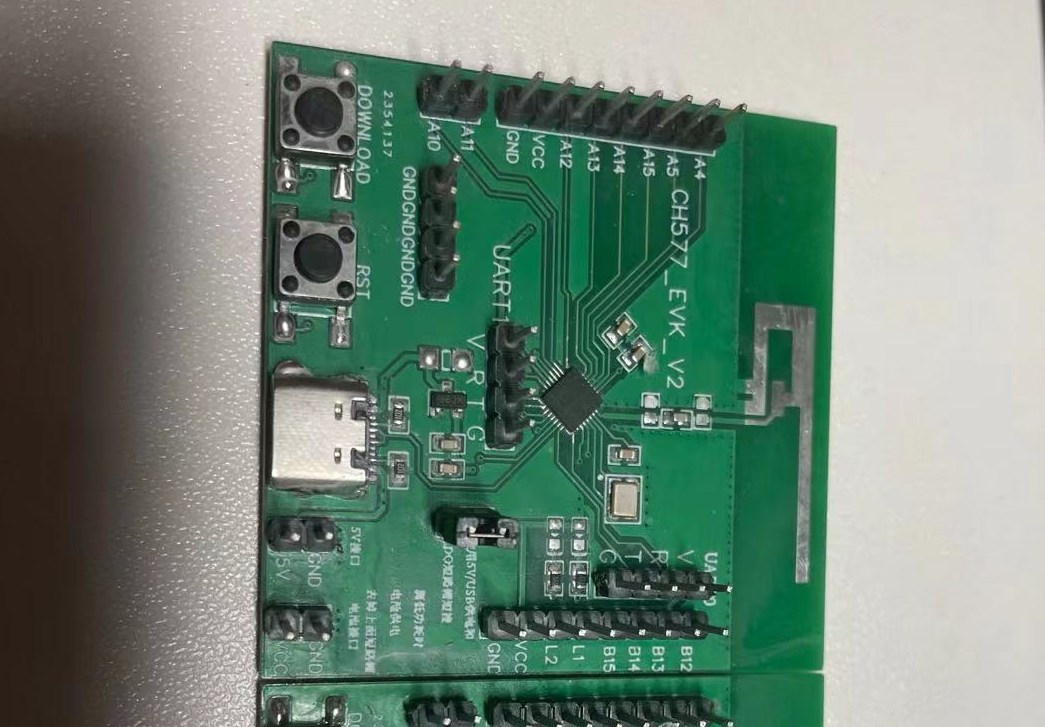

V2 version

1. Add battery interface

2. Add a USB power supply jumper cap. It is more convenient to remove this power supply method when testing low power.

2. Remove the outer 32.786

3. Increase the matching network. Currently, we use JLC proofing 1.6 thickness conventional process, and string 1PF capacitors.

Design Files
