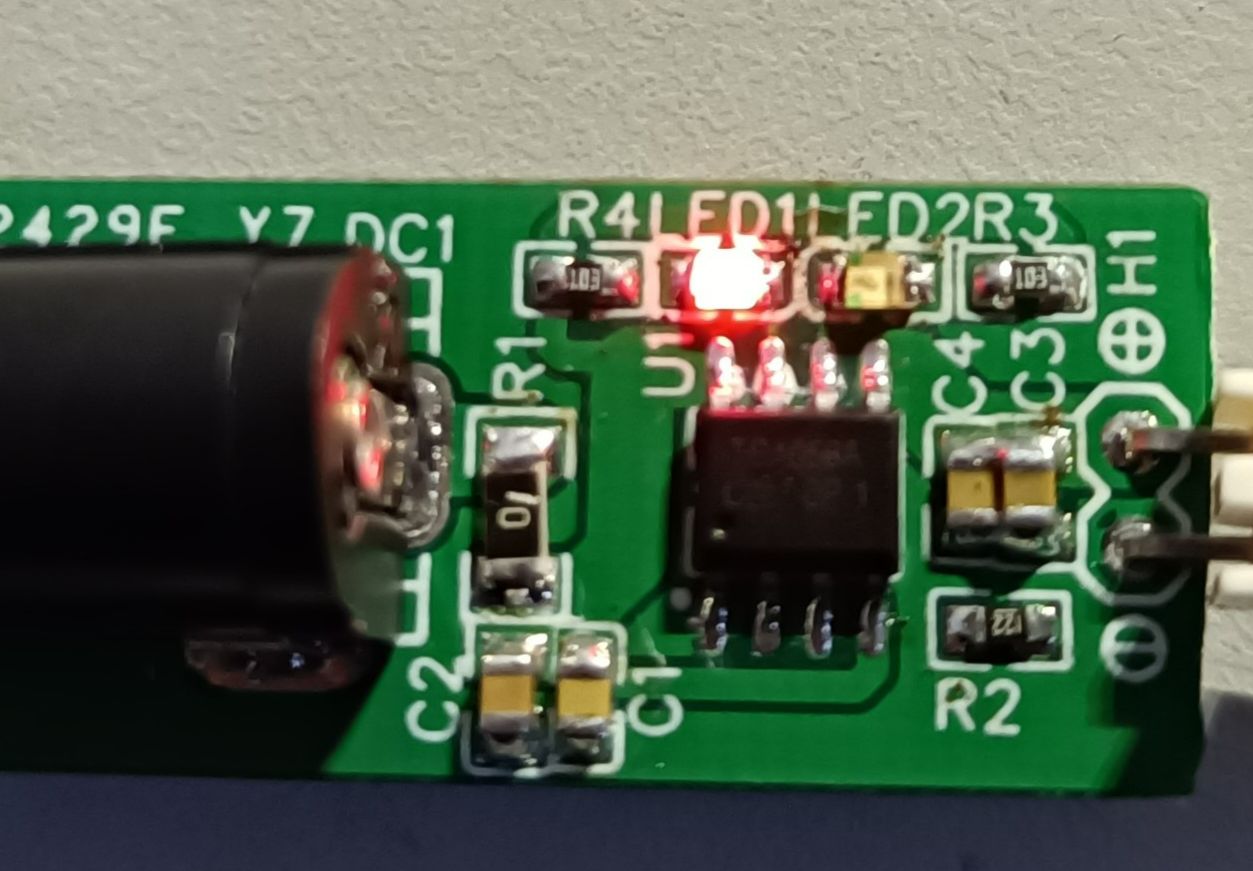

1. Lithium battery charging module using TP4056 as the main chip 2. The current setting charging current of this module is 1A 3. The power port uses commonly used DC, the input voltage range is 4.5-6V 4. The charging cut-off voltage is 4.2V
The above circuits have been tested by me and can be used normally. You should have sufficient understanding of the above circuits and understand the risks involved. I do not guarantee any function or quality of the open source copies; I do not guarantee that you can use this product correctly and use this product. There are no issues with the product. If you have any problems while using this open source project, it has nothing to do with the project author.
