Wireless dimming knob designed based on Tuya ZTU zigbee module

Overview

Project introduction:

This project is based on the wireless dimming knob designed by Tuya ZTU Zigbee module. It supports a variety of actions and can be bound through the APP to adjust the light switch and brightness.

--The module configuration document is in the attachment--

Project plan:

1. Use Tuya ZTU Zigbee module as the main control

2.Powered by CR2302 button battery

3. Support rotation and click to trigger actions

4. For more details, please see the schematic diagram and PCB document.

Disadvantages: Low voltage will cause the module to restart indefinitely. This will be improved in the next version.

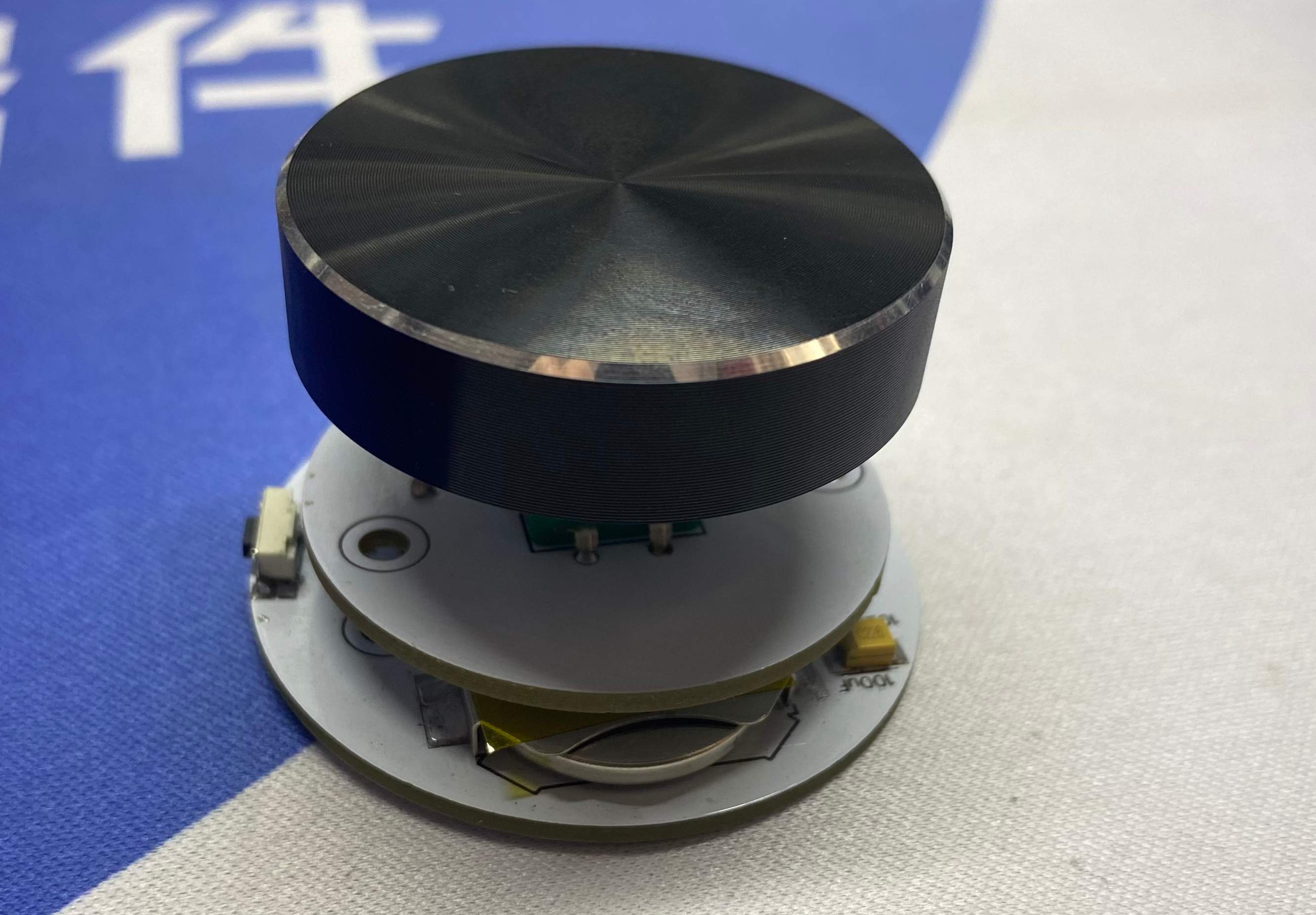

Project pictures:
