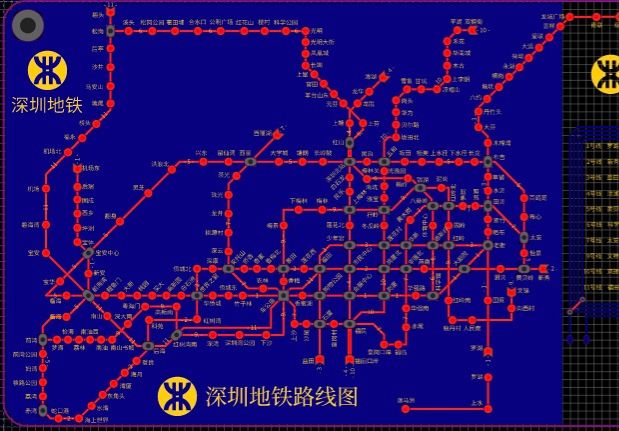

The Shenzhen Expressway Map includes lines 1, 2, 3, 4, 5, 6, 7, 9, 10, and 11. The transfer station adopts a through-hole design. Feel free to use it, improvements and additions are welcome.
The board was printed out, and the silk screen was a bit thin, making it difficult to see clearly at some sites.
