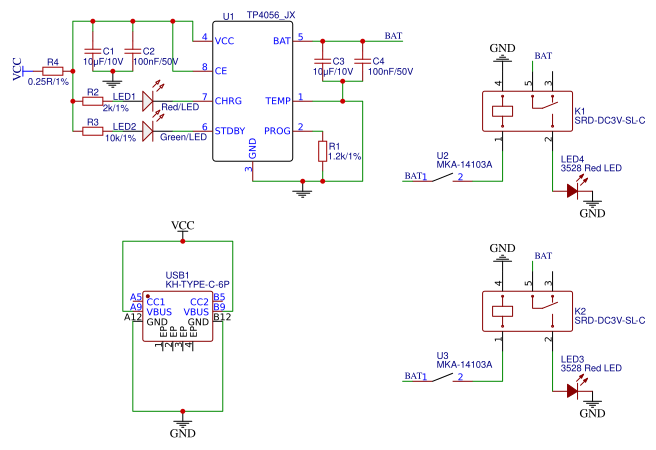

Use reed switches and magnets to automatically light up when opening cabinet doors
With two pairs of sensors, the door can be opened to illuminate whichever side is opened (of course, it can also be opened directly)
Use two 2x14MM 5w cob lamp beads
Integrated tp4056 charging module
Large area of copper paving ensures high current
At the same time, the window design improves heat dissipation efficiency and protects cob lamp beads.
No Hall elements are used to reduce standby power consumption
Large front space for batteries
It adopts a modular charging interface that can be disassembled and replaced at any time, and the raised design makes plugging and unplugging more convenient.
Waiting for the board, the plan needs to be verified
