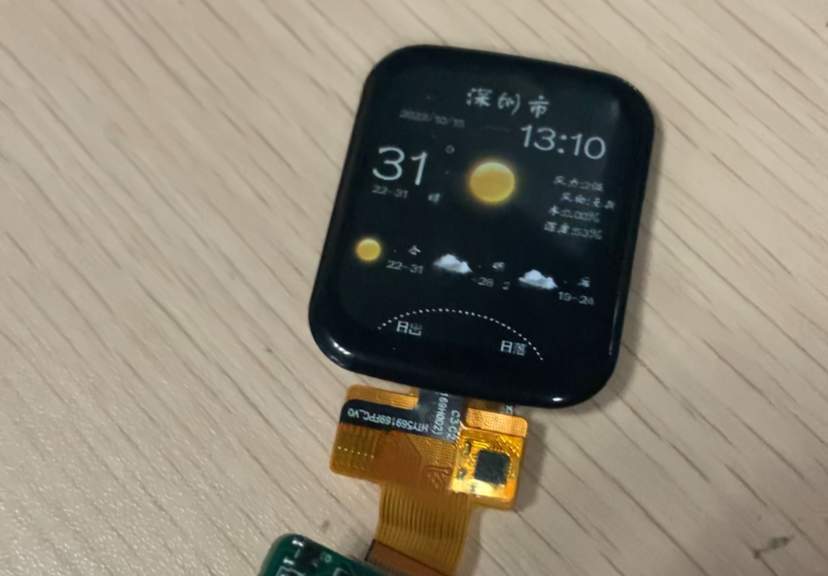

GSM-Wather-S3 simplified version (verified)

Overview

The original project link is: https://oshwhub.com/yeshengchengxuyuan/b4b67ab1e8234aeebea054b4eda6f549
This project merges the two boards of the original project into a four-layer board, minus the SD card, audio and other functions.
This project uses the original project firmware shell.
There is currently no Modification is in progress. If there are any modifications, it will be updated.

Note:
The components used in this project are mainly based on the schematic diagram. Directly importing the BOM will lead to buying the wrong or under-purchasing. For components that Lichuang does not have, it is recommended to purchase
the board on Taobao Uxin. When placing an order, remember to make a note not to use the half-hole process, otherwise the price will be higher.
You can communicate with each other in the comment area. I will reply if I know how.
