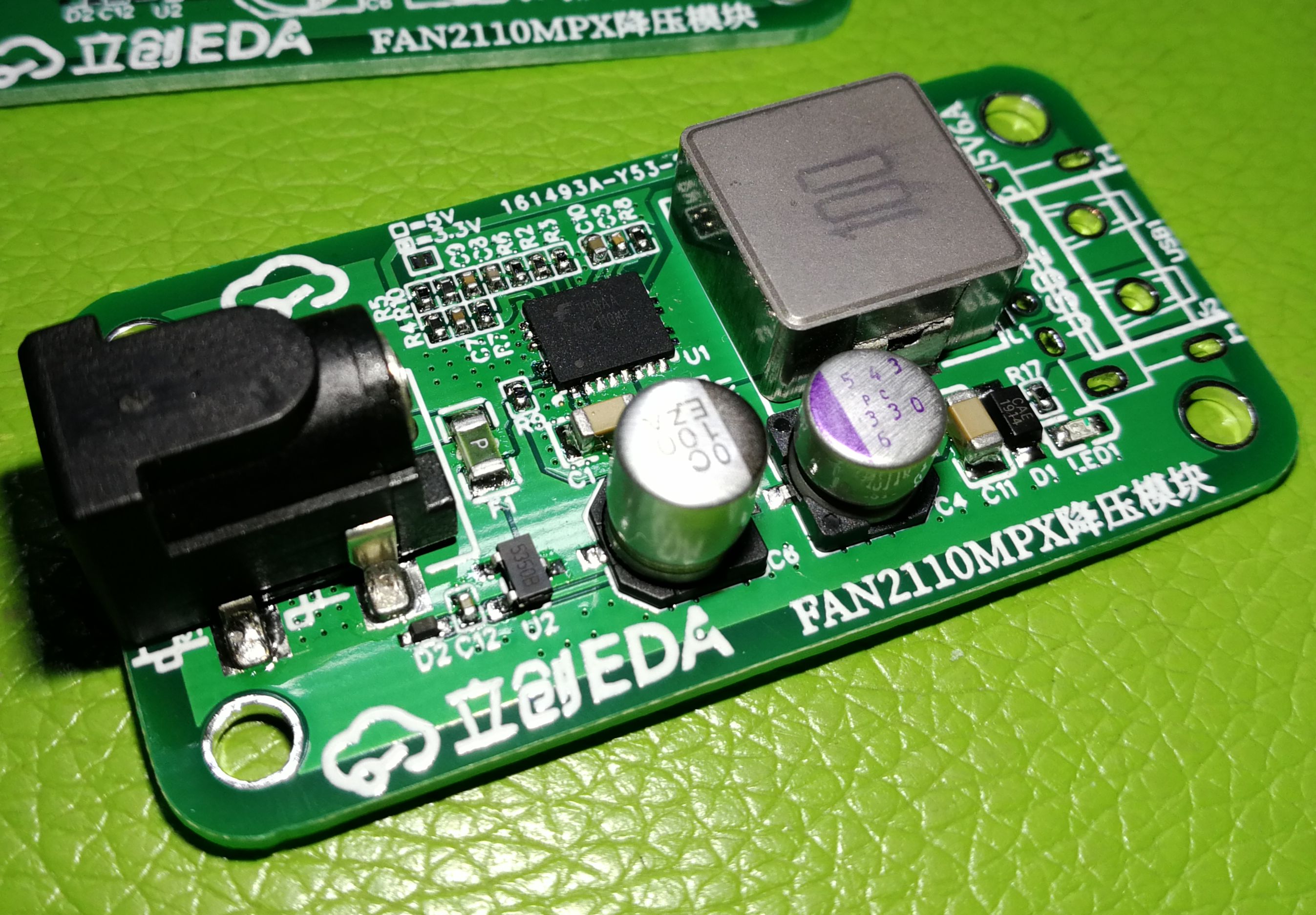

FAN2110MPX high current buck module

Chip solution DC-DC chip FAN2110MPX

A very compact high-power DCDC step-down chip can obtain high-power output of 3.3V10A/5V6A.

Suitable for use in products with limited space.

The module inputs DC socket 5-20V. Output binding post or USB socket. 3.3V10A or 5V6A. (The voltage dividing resistor needs to be modified, no external adjustable resistor is required) Fixed voltage output.

DC input voltage: 5-20v (test 20v)

Output voltage: fixed voltage default setting 5v, jumper short circuit 3.3v

Output current: 6A (maximum 10A lower voltage)

Quiescent current 21ma

Load test output efficiency:

1A (90.3%), 2A (93.1%), 3A (93.2%),

4A (92.5%), 5A (91.4%)

The FAN2110  is a high-efficiency, small, constant frequency 10 A integrated synchronous buck regulator. The FAN2110 uses an optimal interconnection method to include the synchronous MOSFET and controller/driver in a single package, allowing designers to achieve high current requirements in a smaller area with minimal external components. An integrated approach will help minimize critical inductance, making component layout simpler and more efficient than discrete solutions. The FAN2110 provides external loop compensation, programmable switching frequency and current limit. These features make designs more flexible and optimized. High frequency operation enables all ceramic solutions. Summary Current mode modulators use lossless current sensing for current feedback and overcurrent protection. Voltage feedforward facilitates operation over a wide input voltage range. Fairchild's advanced BiCMOS power process combined with low RDS(ON) internal MOSFETs and a thermally efficient MLP package enables high power dissipation in a small package. Output overvoltage, undervoltage, and thermal shutdown protection features help protect the device from damage during faults. The FAN2110  also prevents the pre-biased output from discharging during the startup phase of point-of-load applications.

characteristic

• Wide input voltage range: 3V-24V
• Wide output voltage range: 0.8V to 80% VIN
• 10A output current
• 1% reference temperature accuracy
• Over 93% peak efficiency
• Programmable frequency operation: 200KHz to 600KHz
• Fully synchronous operation with integrated Schottky diode on low-side MOSFET improves efficiency
• Internal bootstrap diode
• Power OK signal
• Start at pre-biased output
• Output accepts ceramic capacitors
• External compensation enables flexible design
• Programmable current limit
• Undervoltage, overvoltage and thermal shutdown protection
• Internal soft start
• 5 x 6 mm, 25-pin, 3-pad MLP package
