RT7236GCP-synchronous rectification and voltage reduction solution module

Overview

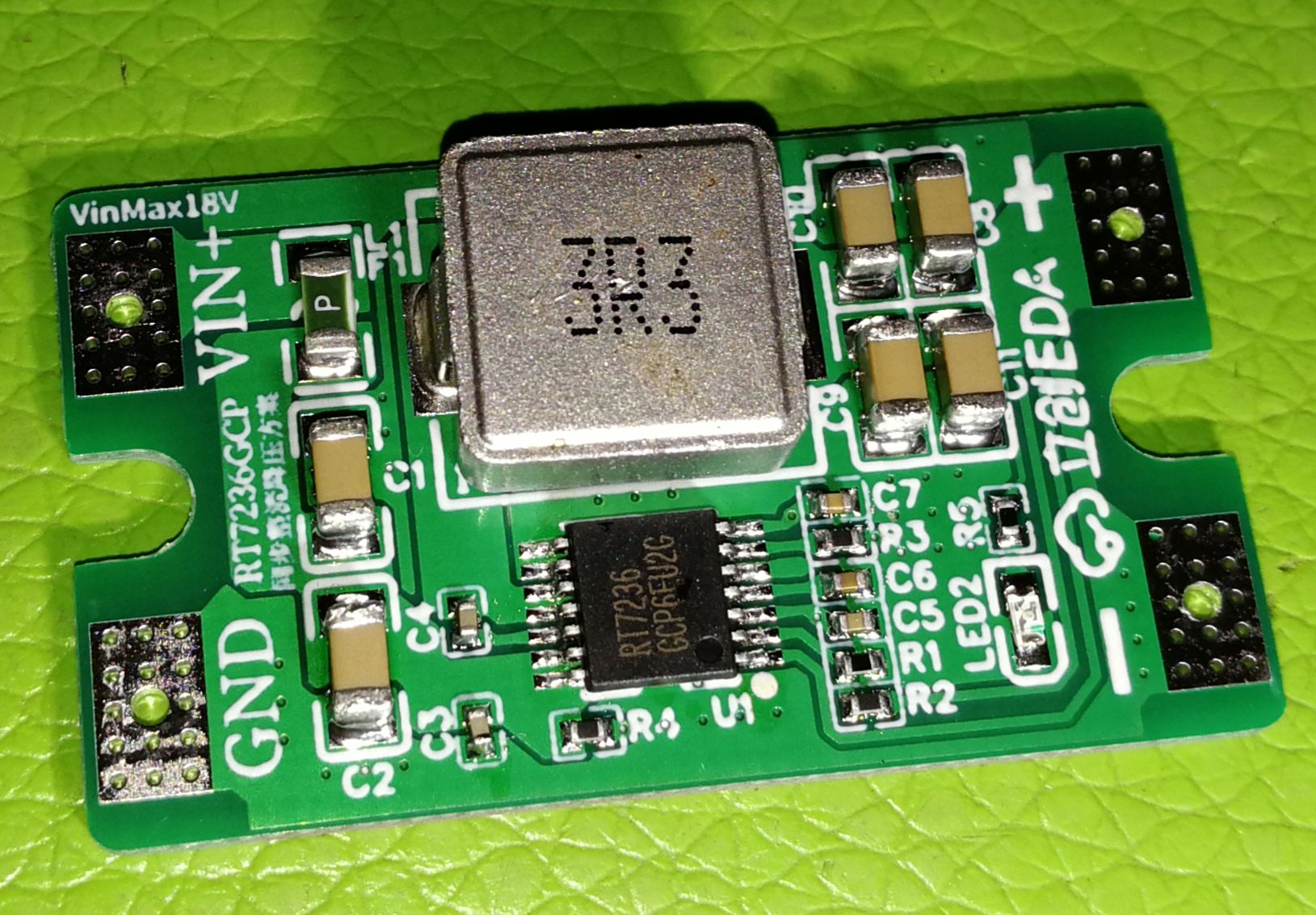

Chip solution DC-DC chip RT7236GCP

Modular PCB

Input voltage: 4.5-18v

Output voltage: fixed voltage (0.765V to 8V, default setting 5v)

Output current: 3A (maximum 5A, voltage needs to be lowered, large current requires sufficient heat dissipation)

Switching frequency: 650kHz

Synchronous rectifier buck chip

Quiescent current 2ma

Load test output efficiency:

1A (91.8%), 2A (91.8%), 3A (89.8%)
