Fast charging protocol module based on SW2303

Overview

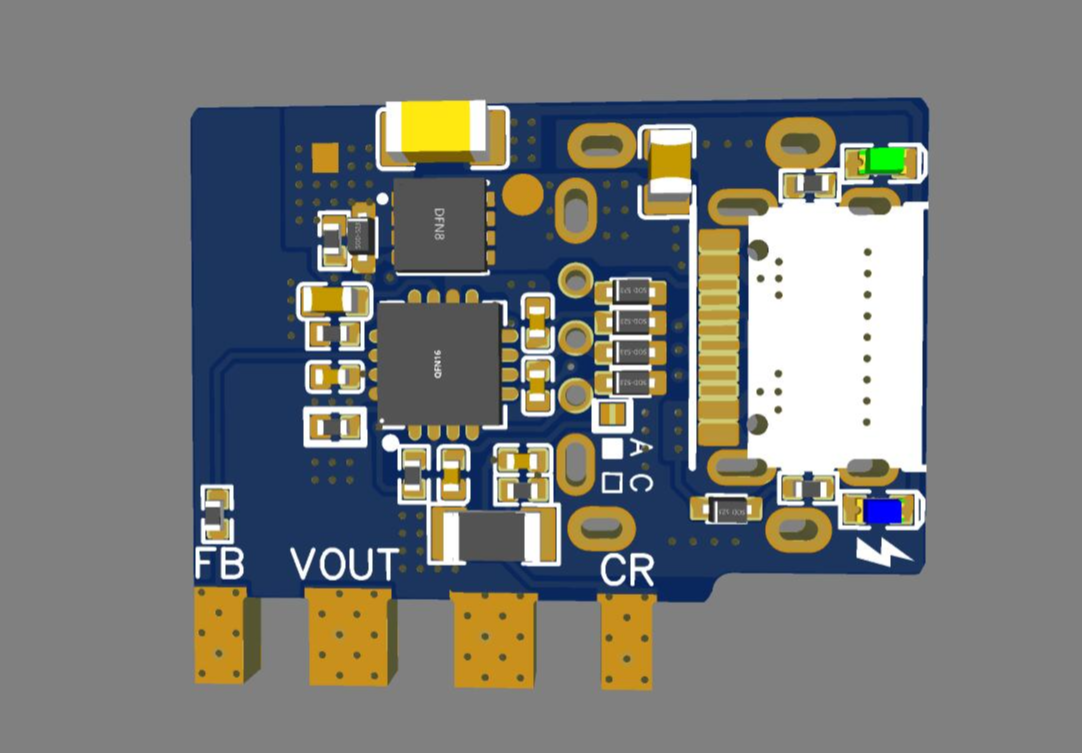

SW2303 protocol small board.

VOUT: External DCDC output.

GND: External DCDC output.

FB: External DCDC pin FB.

CR: small board current sampling output.
