newrudeman

PCB ruler

Overview

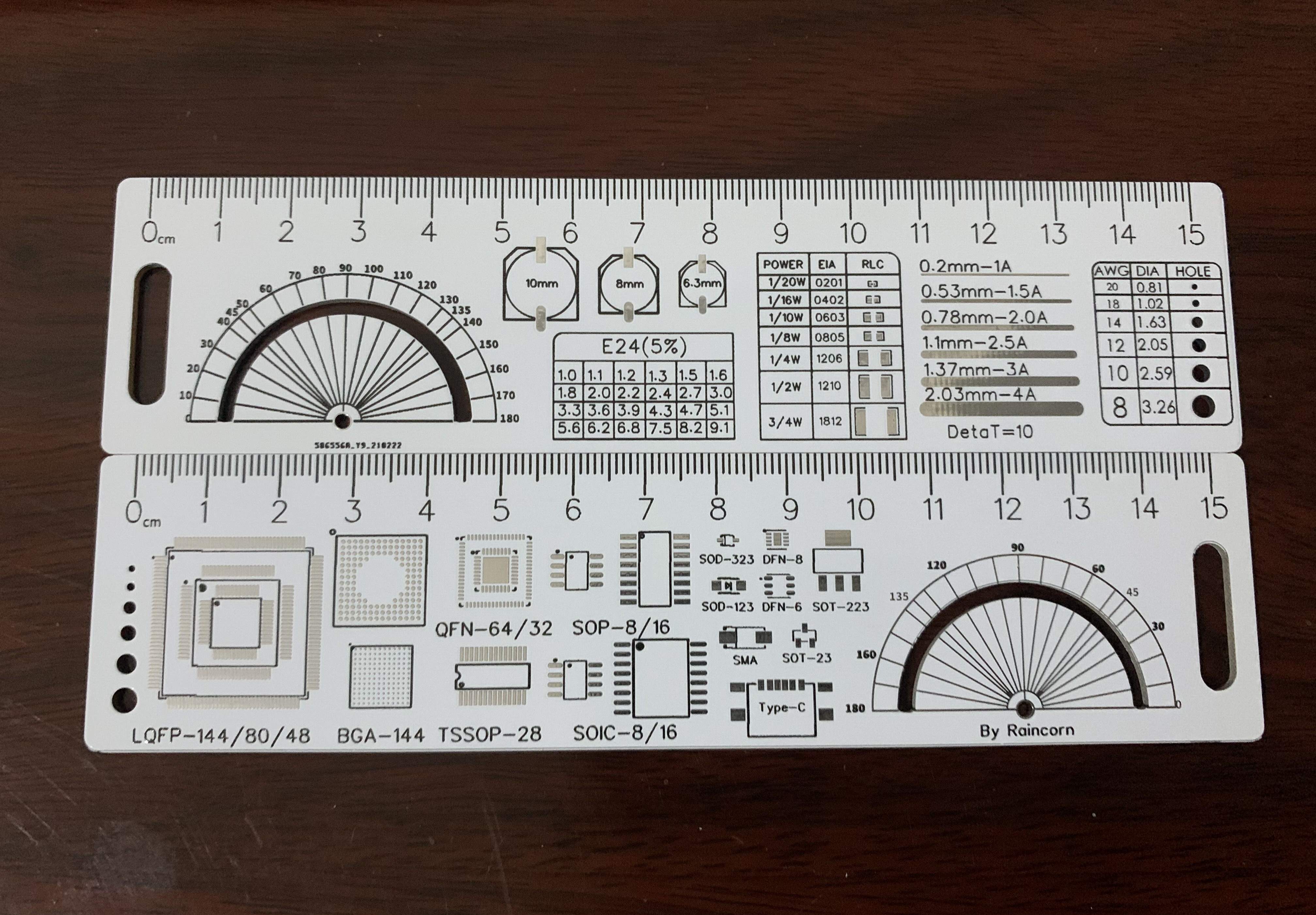

On the front: a protractor with a 10° graduation, chip electrolytic capacitor package, E24 commonly used resistor value table, 0201~1812 packages and their corresponding maximum power, copper wire width corresponding to a FR-4 base material temperature rise of 10 degrees , and a drilling correspondence table.

The reverse side includes: LQFP, BGA, QFN, TSSOP, SOP, SOIC, SOD, SOT, SMA and a Type-C patch package.

Thanks!
