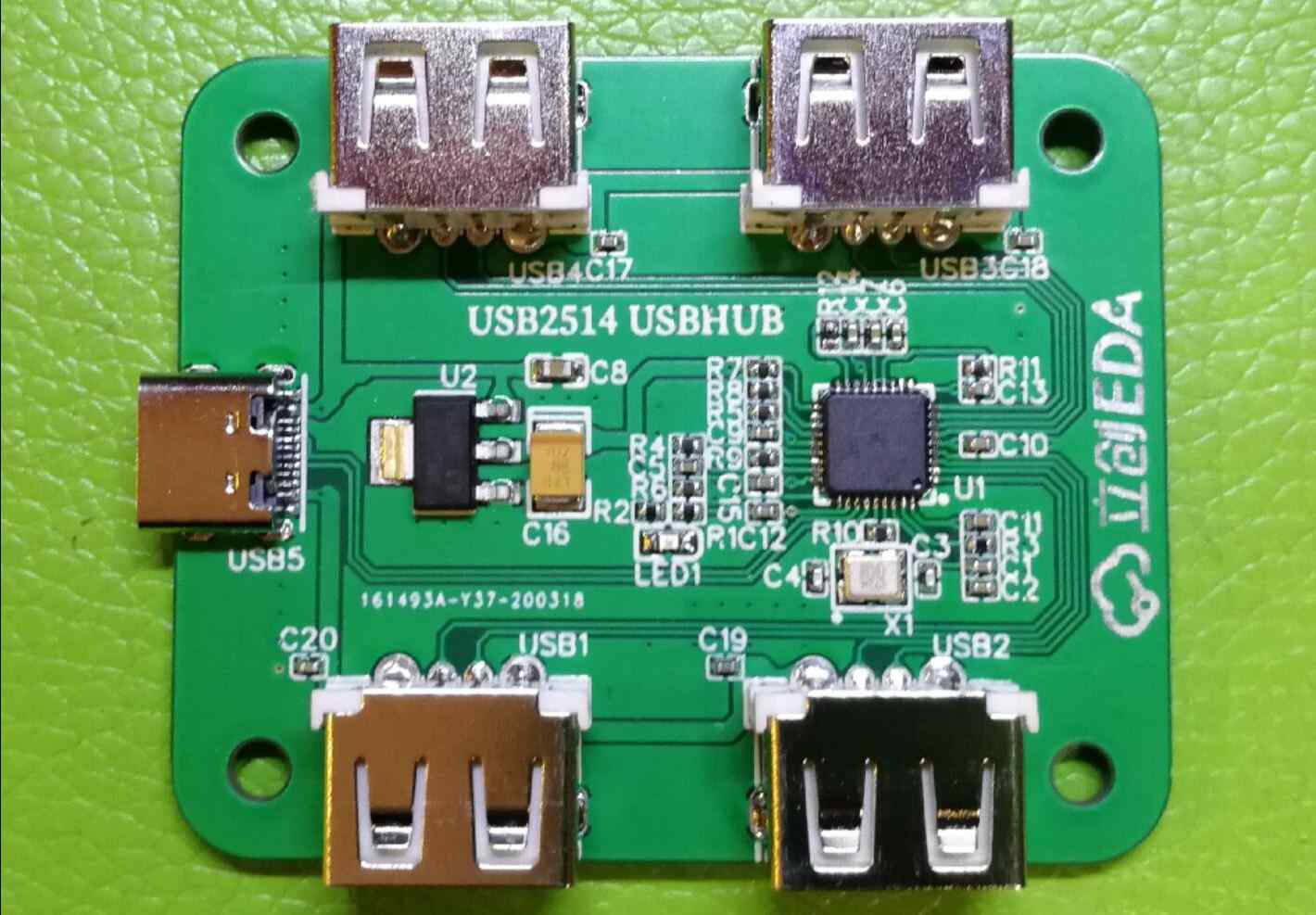

This design is a typical circuit based on USB2514B-AEZC-TR. Inputted by TYPEC, four USB 2.0 interface HUBs are obtained through USB2514B-AEZC-TR1 and 4 points.
It can be used normally after welding directly. Very simple.
