HK32F103C8T6+Tuya WR3 WIFI module full-color night light

Overview

Function

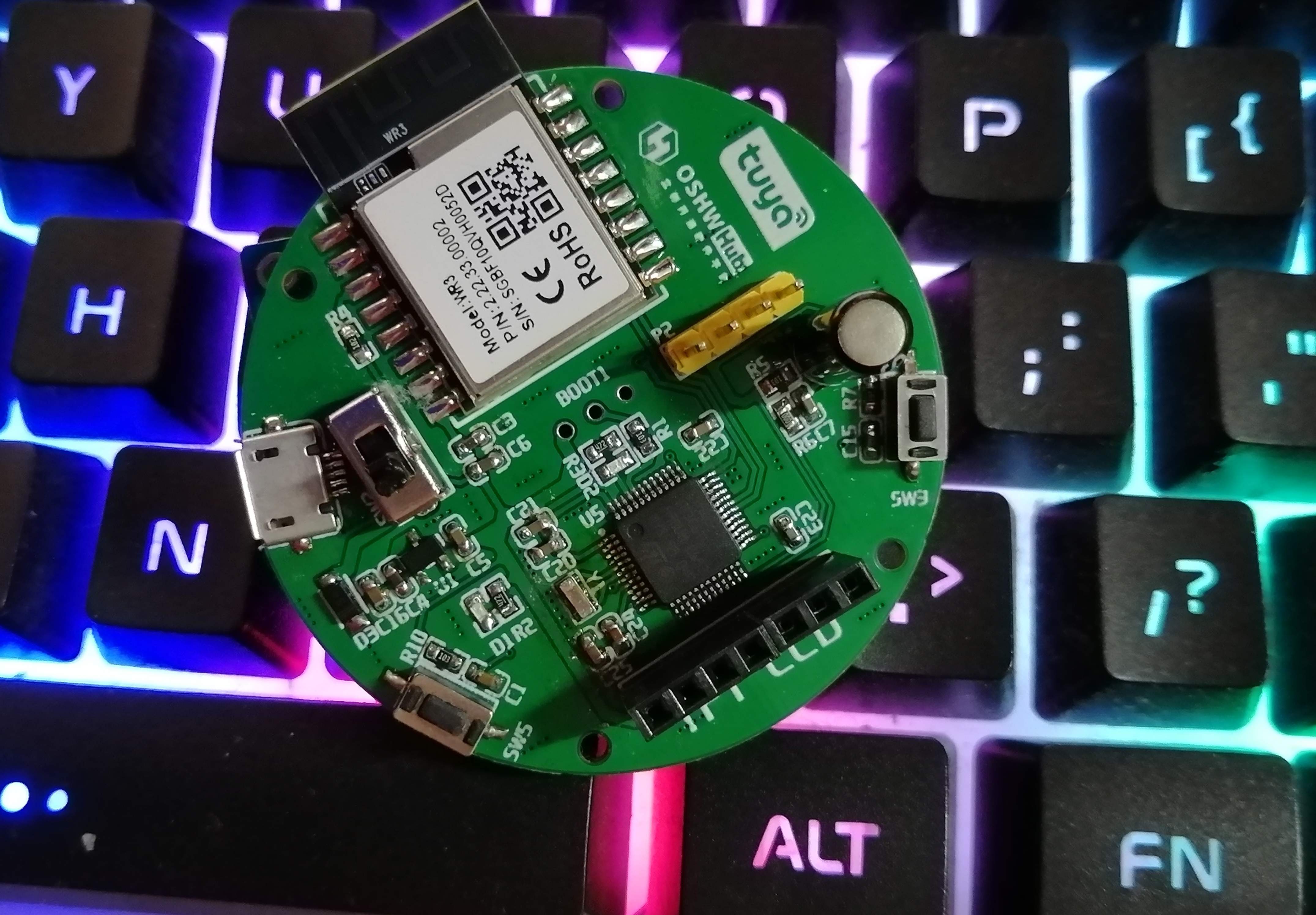

1. Tuya WR3 WIFI module, general firmware for MCU solution, can be controlled by APP 2. Main control HK32F103C8T6 (just have a disassembled chip on hand), USB power supply 3. Reserved ISP-TFT display, currently only used for program debugging. Other functions not implemented 4. SK6812 RGBW full-color lamp, integrated IC inside, single bus control to realize RGB color matching and warm light control 5. Integrated SW520D high-sensitive vibration switch, used to realize the function of tapping the night light to change colors 6. User There is one button and one LED each. When the button is pressed to configure the network, the LED flashes quickly. If the network distribution is successful, the LED goes out. If the network is successfully connected, the LED is always on.

Before MCU transplantation, you need to download the MCU SDK. You can download development materials in the product development-->hardware development section. The SDK file structure is as follows:
