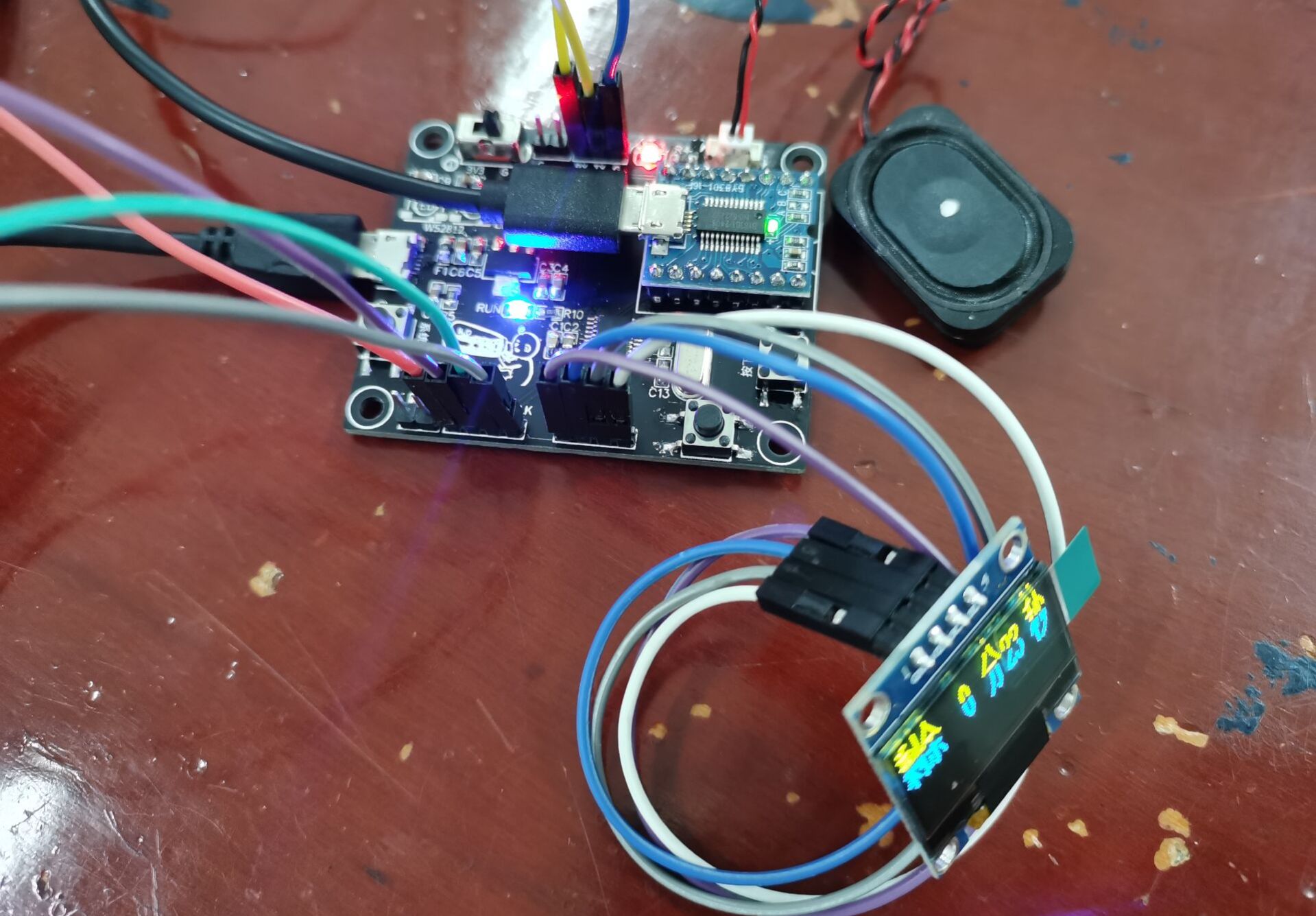

Imitate what the big guys did, for details please refer to: Please move to Station B https://www.bilibili.com/video/BV1jr4y167hy/ . The PCB design this time still uses SMD originals as the main method. Considering the size, it is impossible to use off-the-shelf Arduino and other modules. It is better to just build one yourself. The f0 series was selected as the main control because this project does not require high performance, and due to cost considerations, the simpler, the better. All the pins of this f0 chip are used, and the memory is just right. It can be said that no performance is wasted. Later, I will change the position of the layout and make a shell or something. Take your time~
