16X16 dot matrix_shared version

Overview

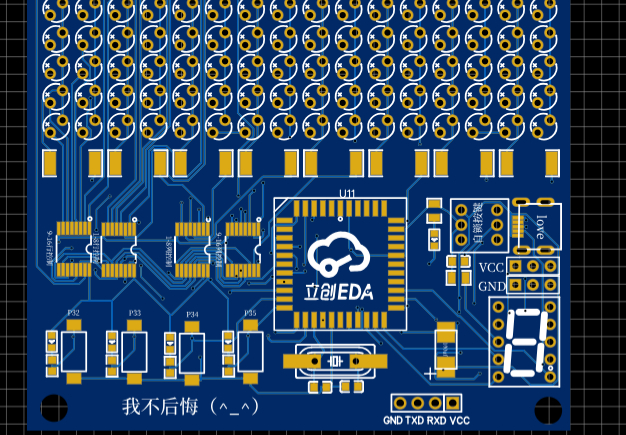

The 89C58 microcontroller controls four 595 chips to drive 256 LED lights. The circuit forming a 16X16 dot matrix has four independent button controls, a digital tube for display, and is equipped with a CH340C crystal-free download circuit.
