The TEA2209T is an active bridge rectifier controller that replaces the traditional diode bridge. Using the TEA2209T with a low-resistance, high-voltage external MOSFET can significantly increase the efficiency of the power converter because the typical rectifier diode forward conduction losses are eliminated.
In addition, TEA2209T also has X capacitor discharge function. To reduce power consumption in standby mode, the TEA2209T can be disabled by an external signal via the COMP pin.

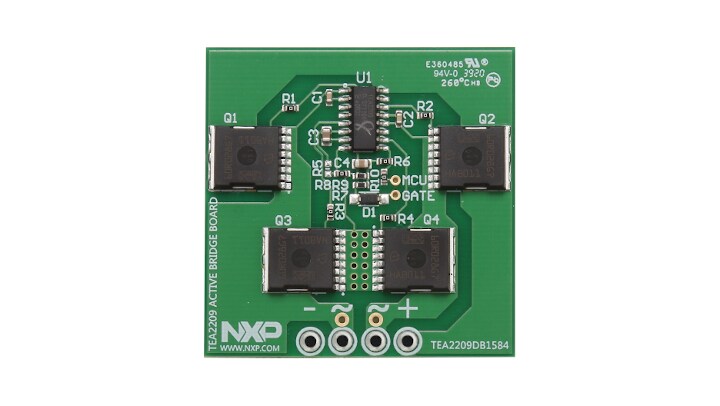

This demo board contains a TEA2209T and 4 low resistance high voltage MOSFETs.
