OM7809: BGU6102 Demonstration Board, 50 Ω FM Low Noise Amplifier, Embedded Antenna for Portable Applications

Overview

The BGU6102 MMIC is an unparalleled wideband MMIC product with integrated biasing features enabling functionality and a wide supply voltage range. BGU6102 is a member of the three major product series (BGU6101, BGU6102 and BGU6104).

This customer evaluation kit includes an application board for the FM band (70 MHz to 130 MHz).

MoreCollapse

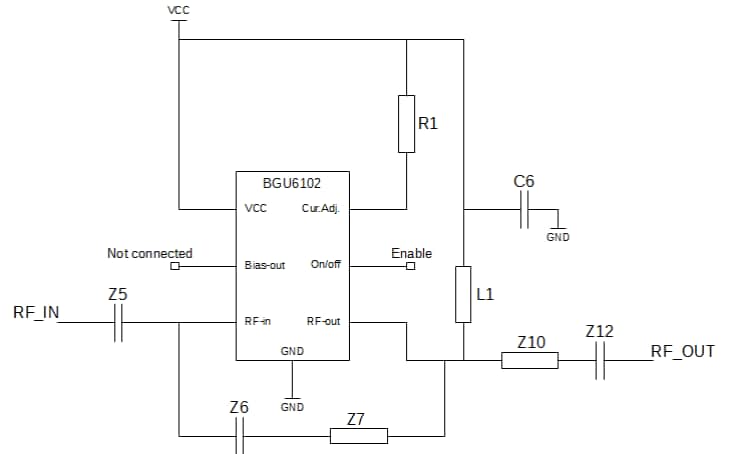

Blockdiagram

Documentation

50 Ohm FM LNA for embedded Antenna in Portable applications with BGU6102
