Configurable digital microphone board

8CH-DMIC

Overview

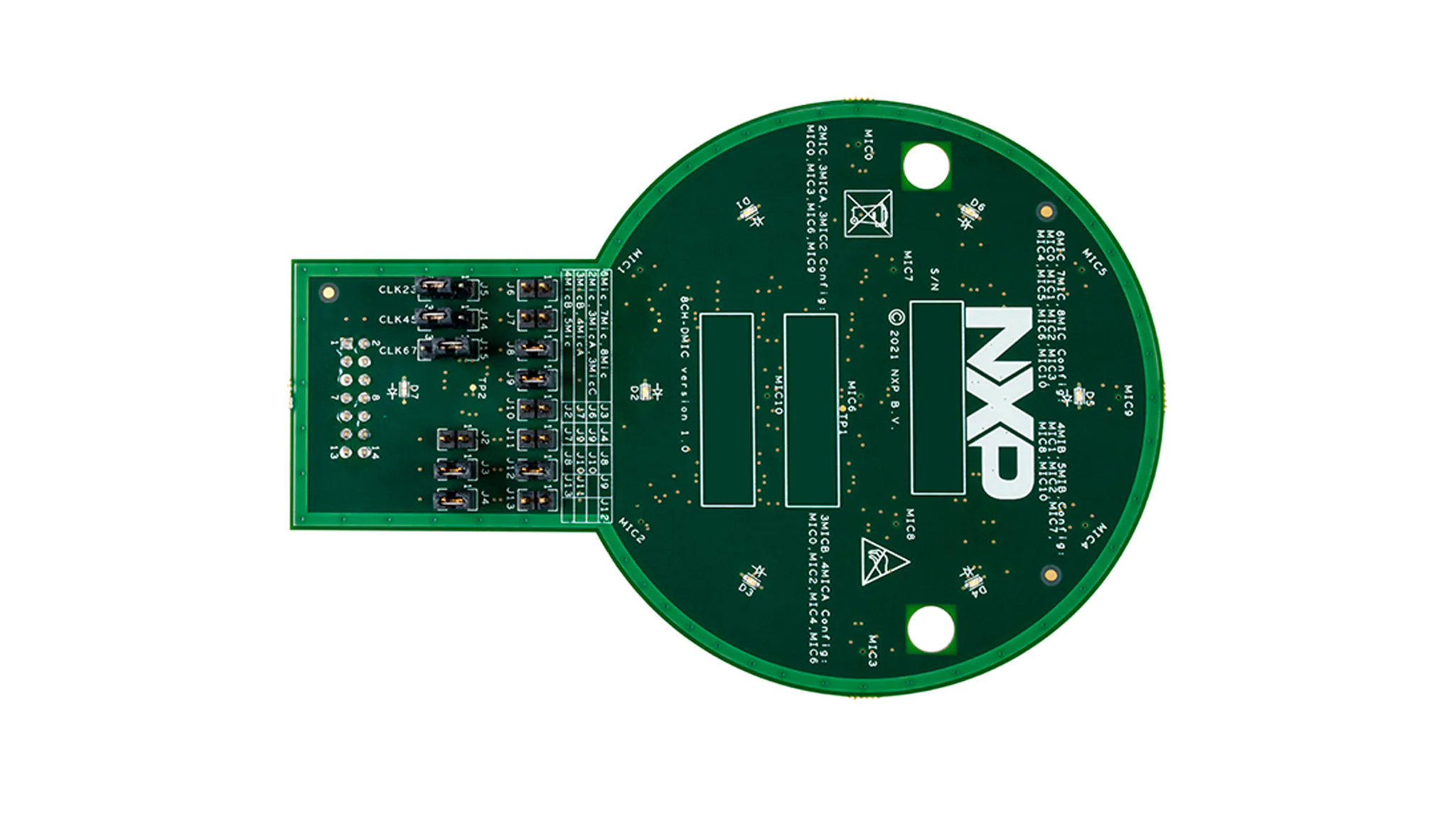

8CH-DMIC is a highly configurable digital microphone board that complements the NXP MCU product range including PDM microphone interfaces. The board comes with 11 digital PDM microphones, up to 8 can be active simultaneously, and can be configured with many different microphone topologies for evaluation and development. The 8CH-DMIC connects to the host MCU evaluation board via a simple connector, which also provides power and optional drive signals to drive the on-board LEDs. All design files are provided for this board, and example code is also provided in the MCUXpresso SDK for the host MCU evaluation board.

Design Files

Printed Circuit Boards and Circuit Diagrams:Eight-Channel DMIC Board Design Files

Documentation

Eight-Channel DMIC Board User Manual
