S32K116-Q048 Universal Evaluation Board

S32K116EVB

Overview

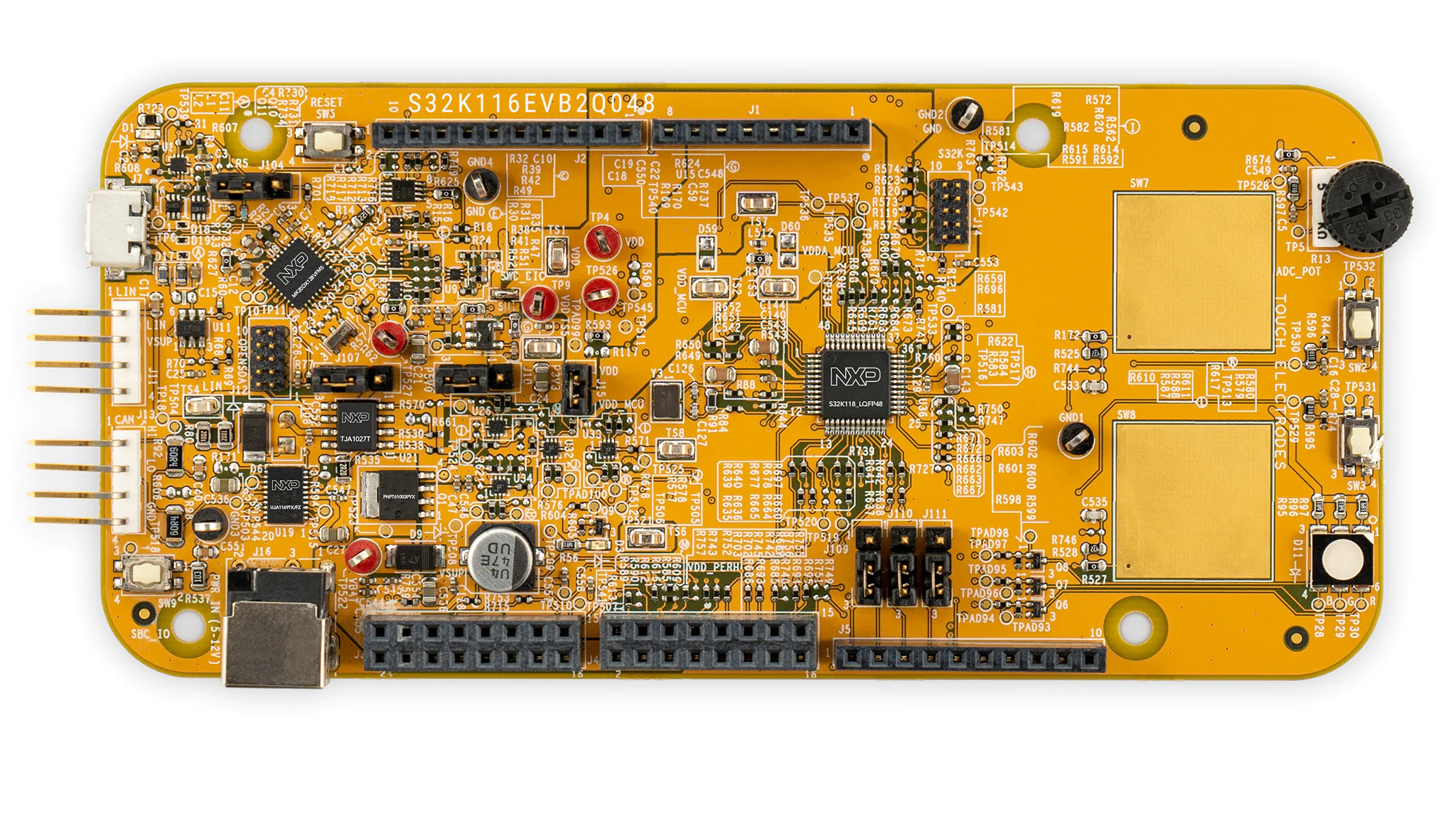

The S32K116EVB2Q048 is a low-cost evaluation and development board for general industrial and automotive applications.

S32K116EVB2Q048 and S32K116EVB-Q048 are based on the 32-bit Arm ^® Cortex ^® -M0+ S32K11x MCU and provide standard specifications compatible with the Arduino ^{® UNO pin layout, with multiple expansion board options.}

Both versions integrate a Secure Hardware Extension (SHE)-compliant security module to enable rapid application prototyping and demonstration.

Design Files

Printed circuit board and circuit diagram: S32K116EVB Evaluation Board – Schematics
