2-way professional car display driver board (button board)

Introduction: A 2-way vehicle-specific display, CVBS standard definition AV driver board. This product is part of the key board of the "2-channel professional car display driver board". Please see the "2-channel professional car display driver board (motherboard)" section for specific details of the motherboard.

1. Product introduction:

A 2-way vehicle-specific display, CVBS standard definition AV driver board. This product is part of the key board of the "2-channel professional car display driver board". Please see the "2-channel professional car display driver board (motherboard)" section for specific details of the motherboard.

2. Application scenarios:

This product is mainly used in vehicle-mounted monitors such as trucks, trailers, and forklifts, screen drivers such as rearview mirrors or convenient equipment, and can provide operators with real-time images.

3. Product Overview:

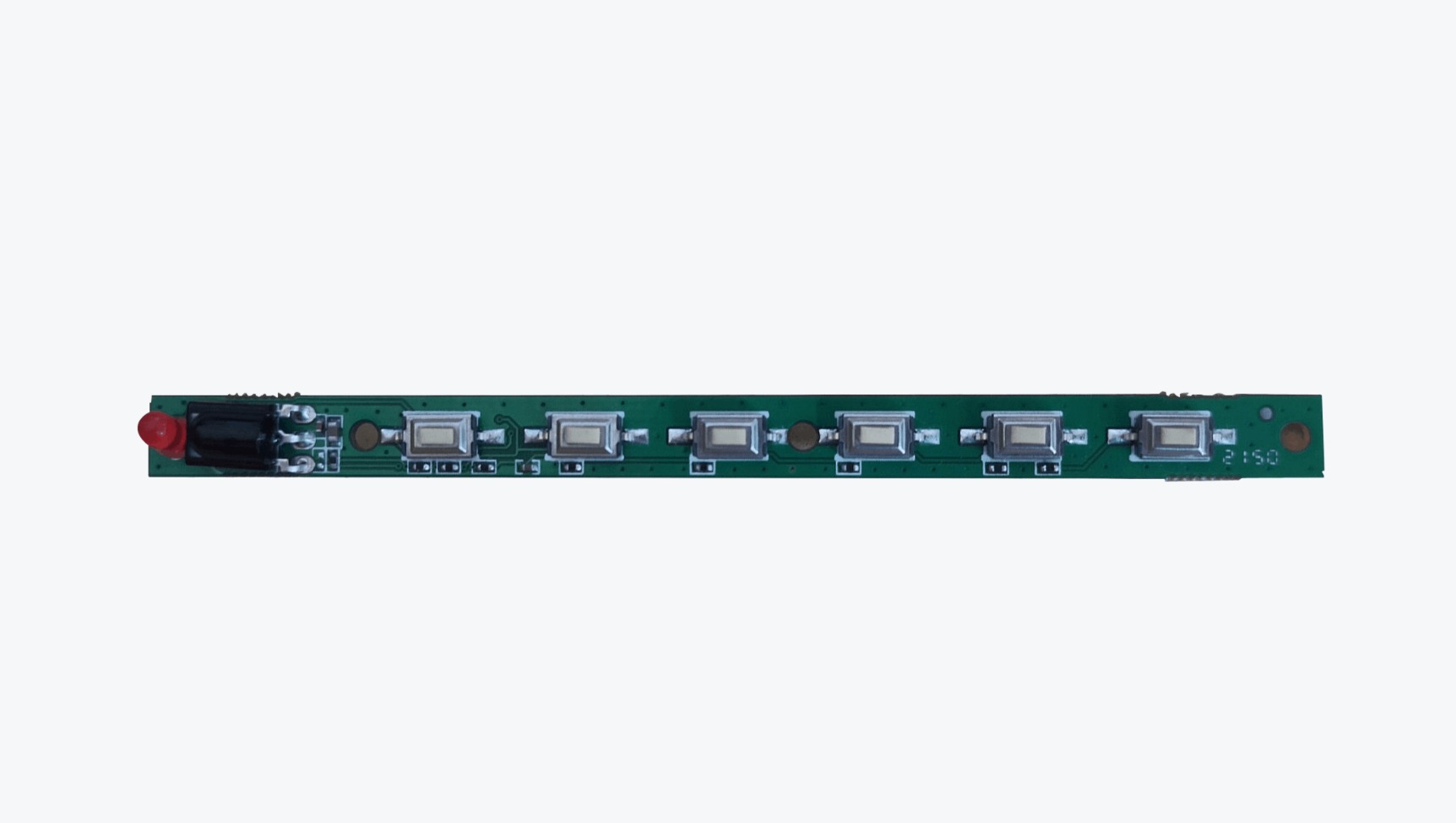

This product is only the key board part of the 2-way professional car display driver board. It must be used with the motherboard through 5P1.25mm same-plane cable to perform functional operations on the motherboard. It is mainly composed of power indicator light, 6 function buttons, and remote control receiver.

4. Product specific parameters:

1. Voltage input: 3.3V.

2. PCB size: 97.5mm×7mm×1.2mm.

3. SMD button specifications: 3x6x2.5mm.

5. Instructions and tutorials:

This button board module cannot Used alone, it must be used in conjunction with the motherboard module. Usage example: (For details on the motherboard module, please see my personal homepage)

1. The motherboard and the key board are connected with a 5P same-surface cable.

2. After power on, the motherboard can be operated through the key board. Operation, function keys: "Power", "Switch", "Rotate", "-", "Menu", "+".

3. Remote control can also be used (6 keys, first code compatible with 00FF, 866B).


6. Remarks :

1. This key board is used with the motherboard and is free of charge.

2. The key board is pure hardware and can be used after connecting it to the motherboard with a cable.

3. This project does not come with a remote control. If you need to use it, please purchase it separately (if necessary We configure it, you can also contact us).
