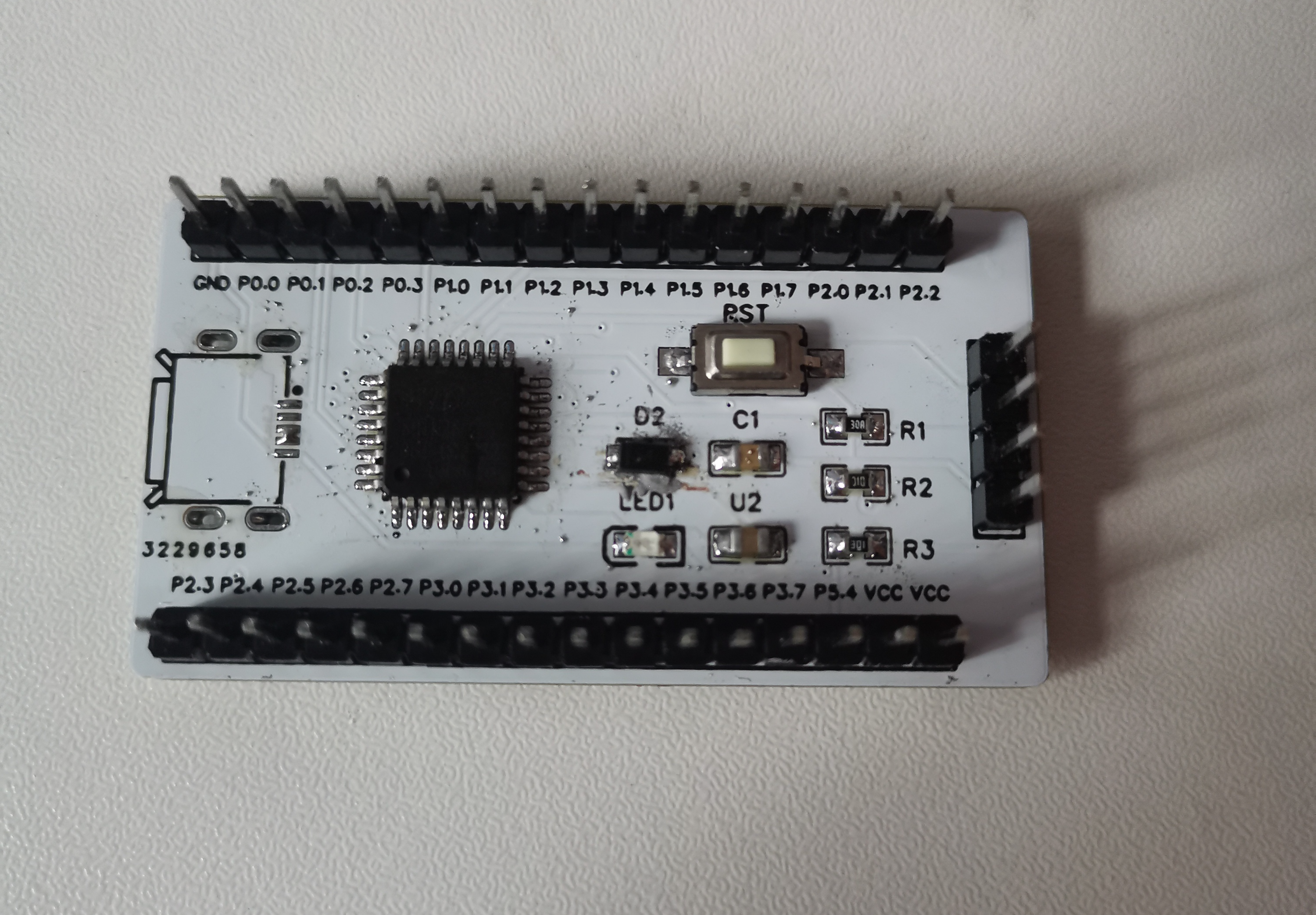

With RST reset button, micro interface, power indicator light. Note that the micro interface is 0.8. I found it was larger than normal when I arrived, so I was too lazy to change it. The micro interface is only connected to VCC and GND. I originally wanted to use a type c interface, but it was too difficult to solder:(
