【Electronic Competition】 Wiring adapter board

Overview

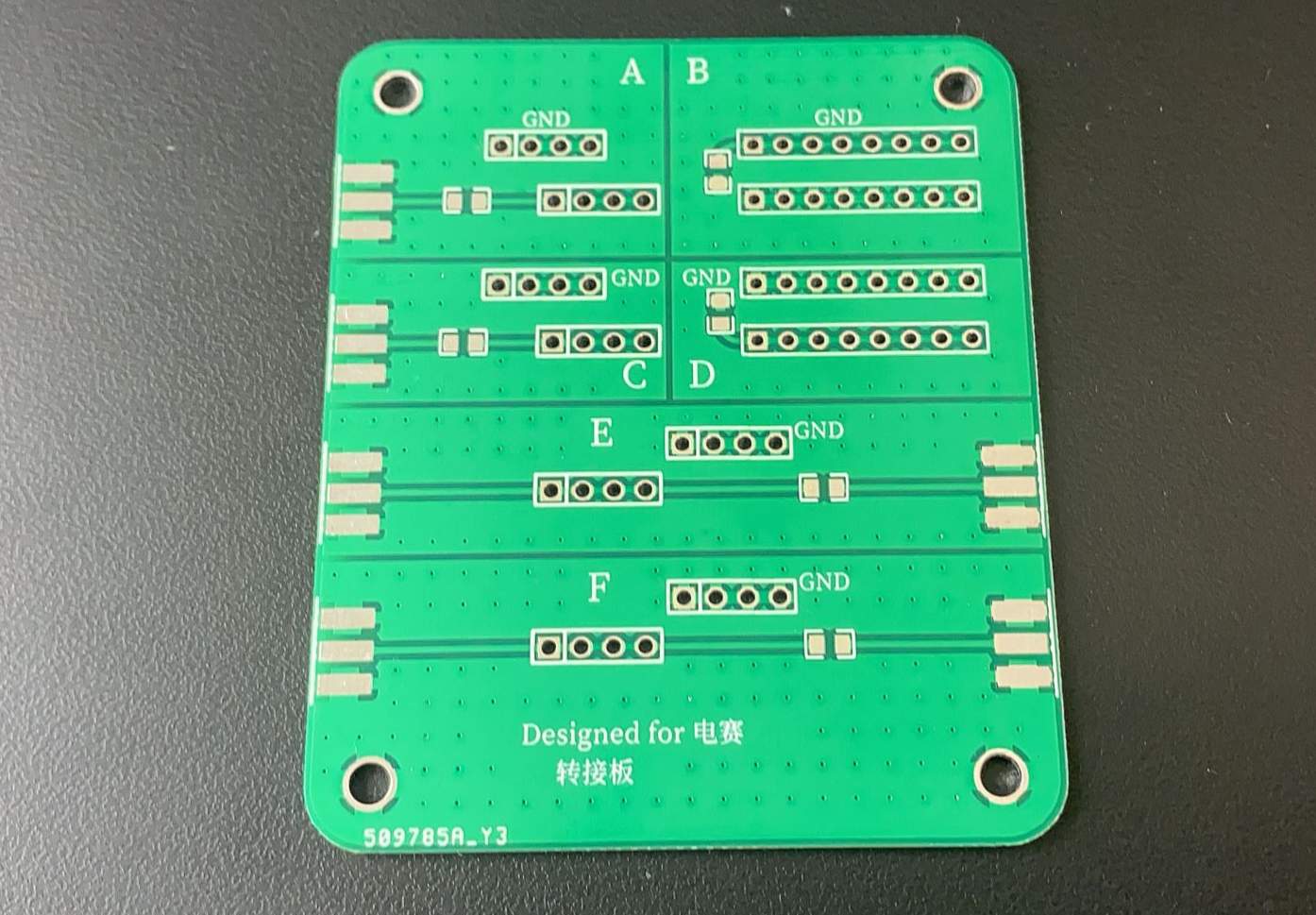

An adapter board that has no technical content but is easy to use;

Suitable for simple DC isolation and wiring conversion;
it is recommended to make one, it can save a lot of trouble in official competitions;

There are six partitions in the whole board, and they do not share the same ground with each other.
