ISP small board for RT809H programmer

rt809h programmer software features

Supports 24/25/93/95 series serial SPI Flash, EEPROM offline reading and writing.

Supports 26/27/28/29/30/39/49/50 series NOR Flash/PROM reading and writing.

Supports automatic identification and offline reading and writing of TSOP48 and BGA packaged NAND Flash parameters.

Support Windows XP, Windows Vista, Windows 7, windows 8, windows 10

No external power supply is required, low power consumption, and can be used as a VGA signal generator for easy maintenance.

With intelligent sensing function, most chips support intelligent identification and random placement when reading and writing offline.

Supports online and offline EMMC identification, BOOT/USER/RPOM/GPP area reading and writing.

I2C/serial port ISP is powerful and compatible with most LCD chip solutions. It can view print information online, read and write NOR/NAND/EMMC chips online, and read and write notebook EC chips online or offline.

Supports laptop motherboard IT8/KB90/NPCE/NEC16 series EC chip reading and writing.

This solution uses the ISP interface on the back of the RT809H programmer to enable flying wire reading and writing of the font. By cooperating with the EMMC to TF card transfer, flying wire-free operation can also be achieved, and there is no need to buy expensive sockets. It also introduces functions such as TTL

preview:

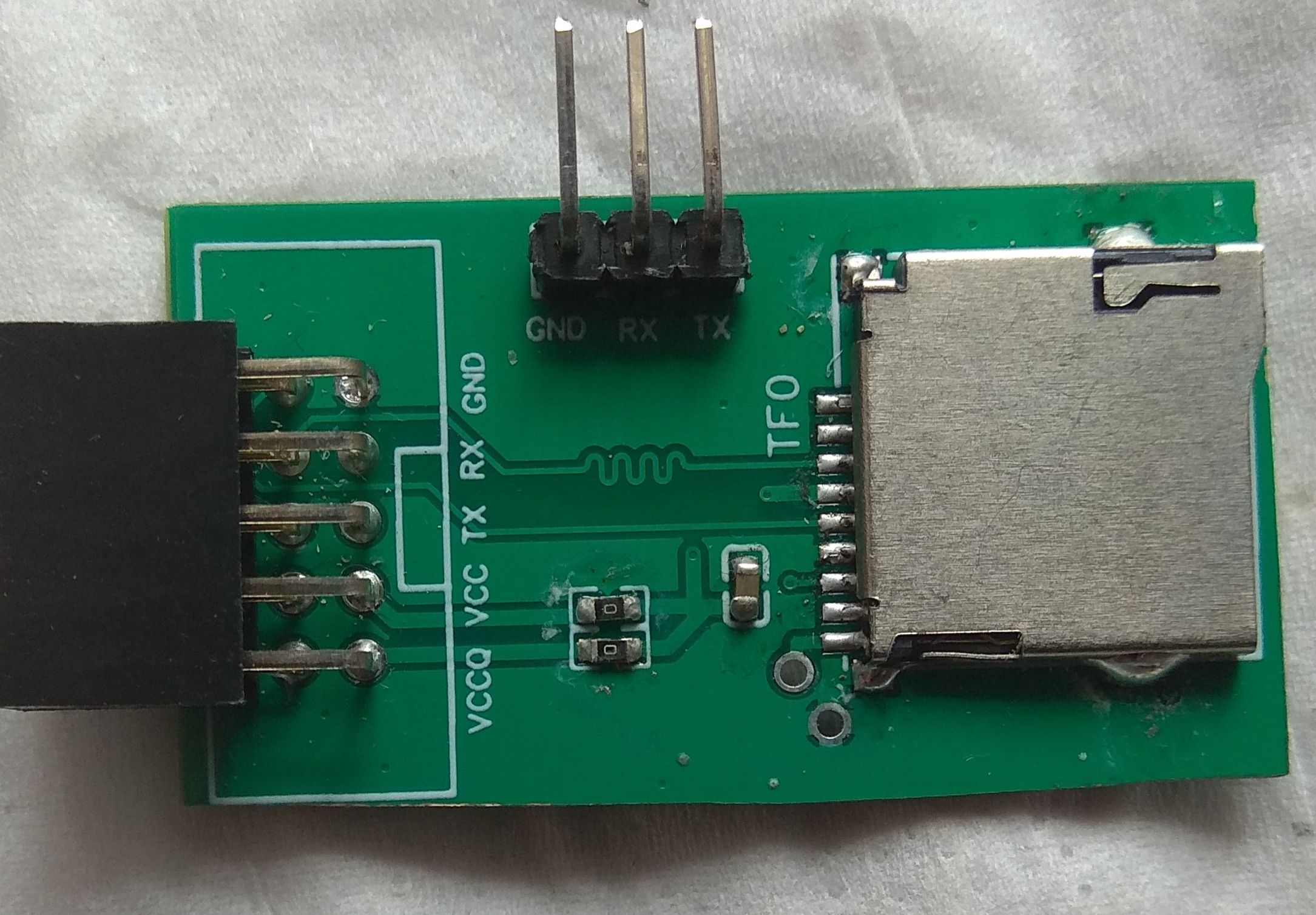

Physical map:

A very simple and practical adapter board, it has been verified and is available on a certain fish!
