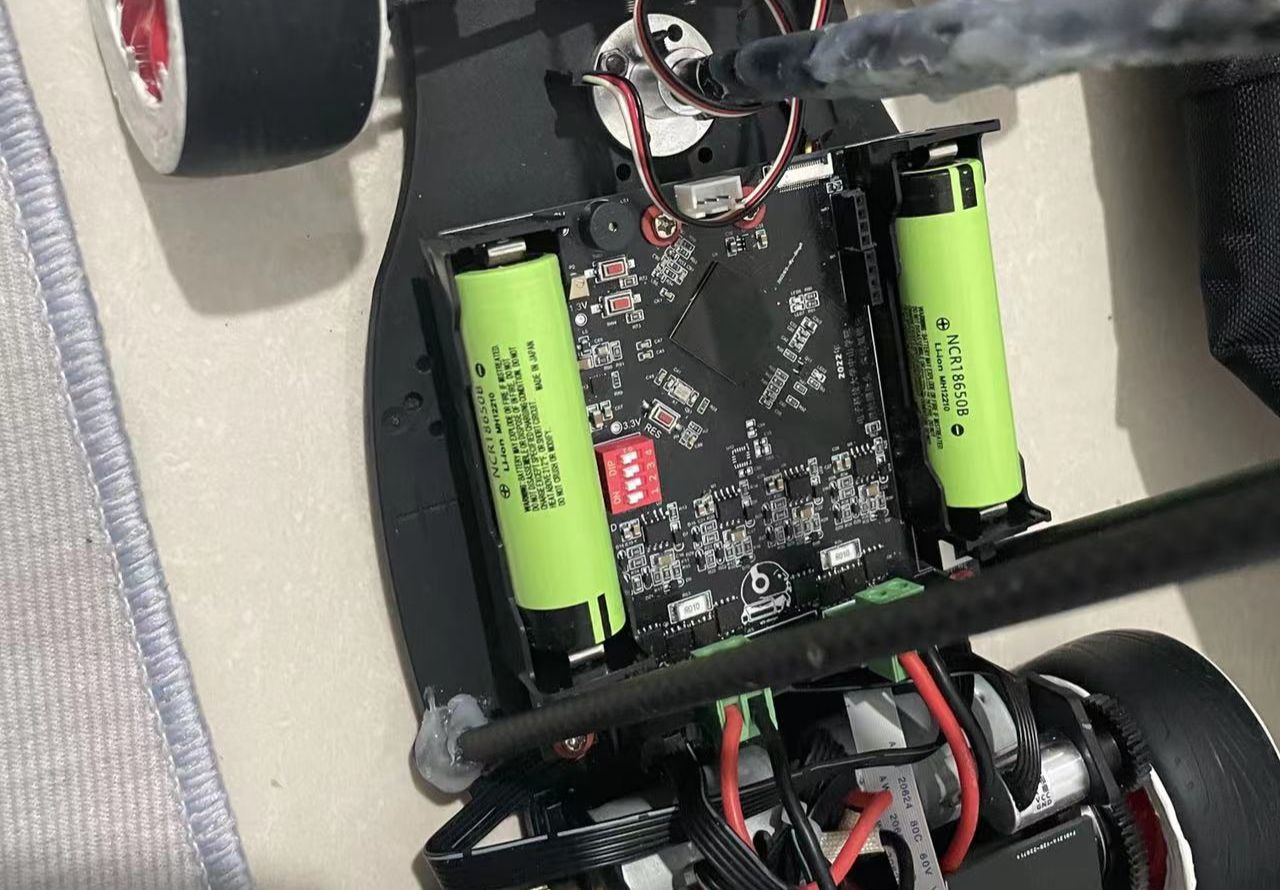

Peripherals include MT9V034, ICM20602, dual-channel BDC driver based on IR2104, four-op amp low-end motor current detection, onboard dual 18650 sockets and a hardware battery protection circuit. (PCB hole position is suitable for C car model)
The project files uploaded in this project are directly exported from AD without checking errors!!!!! For demonstration purposes only
There are multiple versions of PCB, some instructions and complete AD original files uploaded to https://github.com/Jason-DingYH/17-TC377-.git
Station B explanation video https://www.bilibili.com/video/BV1XW4y1h7Xj/?vd_source=11e13f6be2ddeac8faa06007e6096aa2
