SY7065/66 verification board

Overview

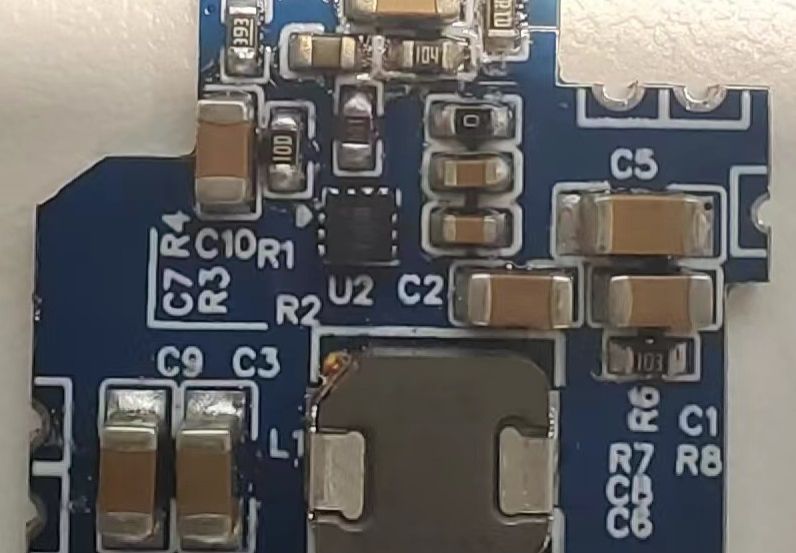

Due to structural and demand constraints, this special-shaped boost module is prototyped, with dimensions of 1.87*2.92CM, input voltage: 1.8-5V, output voltage: 5V, output current: 2A. The actual board can be enlarged without stamp holes.

Note: The temperature rise of the module output above 2A is too large and heat dissipation is required.

The module has been verified and some measurement parameters are as follows:

No-load ripple test
1A load voltage test
1A ripple test
1A temperature test
2A load voltage test
2A ripple test
2A temperature
3A load voltage test
3A temperature
